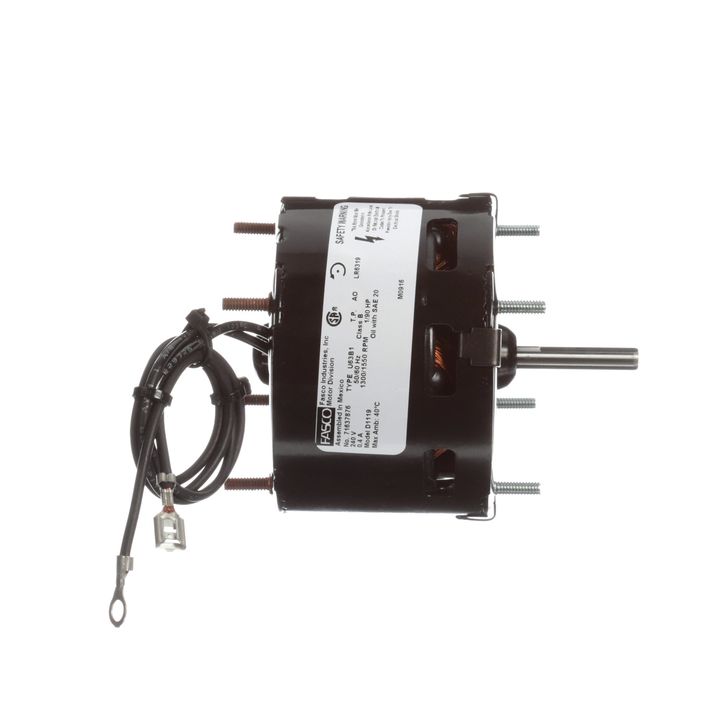

D1119 Fasco Fan Motor

* Image is for reference only

D1119 Fasco Fan Motor | 1/90HP 1500RPM 3.3" OPEN 240V Single Phase

SKU: D1119
$95.76
Sale $95.76
Description
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Enclosed Shaft End and Lead End End-Frame, Open Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/4" Diameter Shaft with Flat
  • 12" Lead with Spade Terminal, 12" Lead with Ring Terminal
  • Extended Studs Shaft End and Lead End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/90 Hp
Output KW: 0.01 kW Voltage: 240 V
Speed: 1300/1550 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 0.40 A
Duty: Air Over Insulation Class: B
UL: No CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 4.12 in
Frame Length: 2.07 in Shaft Diameter: 0.250 in
Shaft Extension: 1.5 in

General Specifications

UPC: 815585028352 Weight: 2.20 LB
Packaged Length: 8.00 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN Country of Origin: Mexico
