D1118 Fasco Motor 1/30 HP, 1500 RPM, 240 V, 1 Phase

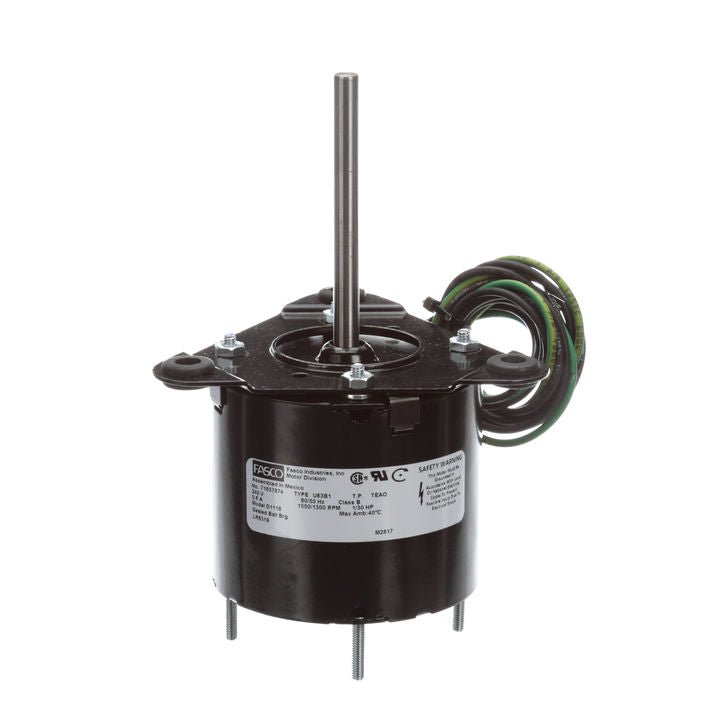

* Image is for reference only

D1118 Fasco Motor 1/30 HP, 1500 RPM, 240 V, 1 Phase

SKU: D1118
$131.99
Sale $131.99
Description
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16" Diameter Shaft with Flat
  • 23" Leads
  • Extended Studs Opposite Shaft End, Mounting Plate Shaft End
  • Clockwise shaft end
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/30 Hp
Output KW: 0.02 kW Voltage: 240 V
Speed: 1550/1300 rpm Service Factor: 1
Frame: 3.3 Enclosure: Totally Enclosed Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 0.60 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Lug Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 6.65 in
Frame Length: 2.62 in Shaft Diameter: 0.312 in
Shaft Extension: 3.5 in

General Specifications

UPC: 815585028321 Weight: 4.00 LB
Packaged Length: 8.00 IN Packaged Width: 5.63 IN
Packaged Height: 5.00 IN Country of Origin: Mexico
