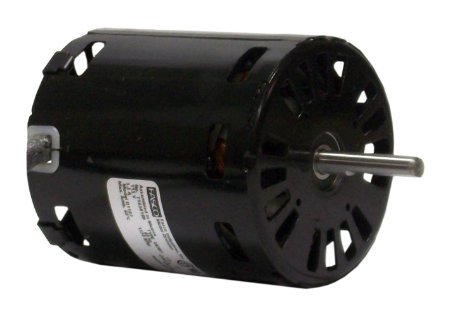

D1107 Fasco Motor 1/10 HP, 1550 RPM, 115 V, OEM, 1 Phase

* Image is for reference only

D1107 Fasco Motor 1/10 HP, 1550 RPM, 115 V, OEM, 1 Phase

SKU: D1107
$170.16
Sale $170.16
Description
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16" Diameter Shaft with Flat
  • 25" Leads
  • Extended Studs Shaft End and Opposite Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/10 Hp
Output KW: 0.07 kW Voltage: 115 V
Speed: 1550 rpm Frame: 3.3
Enclosure: Open Air Over Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 3.20 A Duty: Air Over
Insulation Class: B UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Round Belly Band Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 5.42 in
Frame Length: 3.70 in Shaft Diameter: 0.312 in
Shaft Extension: 1.45 in

General Specifications

UPC: 815585028239 Weight: 5.00 LB
Packaged Length: 11.00 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN Country of Origin: Mexico
