D1104 Fasco Motor 1/50 HP, 1550 RPM, 115 V, 1 Phase

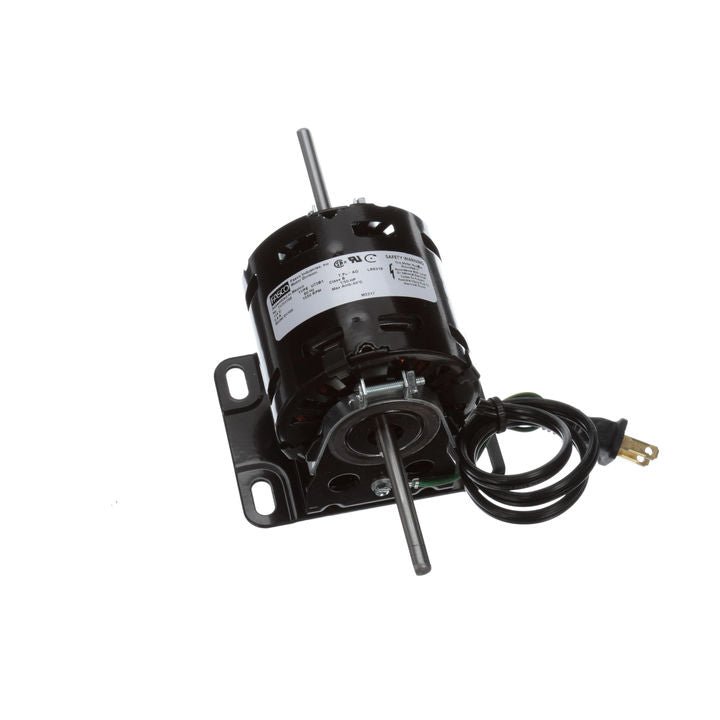

* Image is for reference only

D1104 Fasco Motor 1/50 HP, 1550 RPM, 115 V, 1 Phase

SKU: D1104
$170.16
Sale $170.16
Description
  • OEM Direct Replacement Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Double Shaft with Flat
  • 20" Leads with Molded Plug
  • Resilient Base
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/50 Hp
Output KW: 0.01 kW Voltage: 115 V
Speed: 1550 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 0.90 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Resilient Base Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 8.90 in
Frame Length: 2.80 in Shaft Diameter: 0.313 in
Shaft Extension: 2.25 in

General Specifications

UPC: 815585028215 Weight: 4.80 LB
Packaged Length: 10.50 IN Packaged Width: 5.38 IN
Packaged Height: 4.38 IN Country of Origin: Mexico
