D109 Fasco Motor 1/15 HP, 1600 RPM, 115 V, 1 Phase

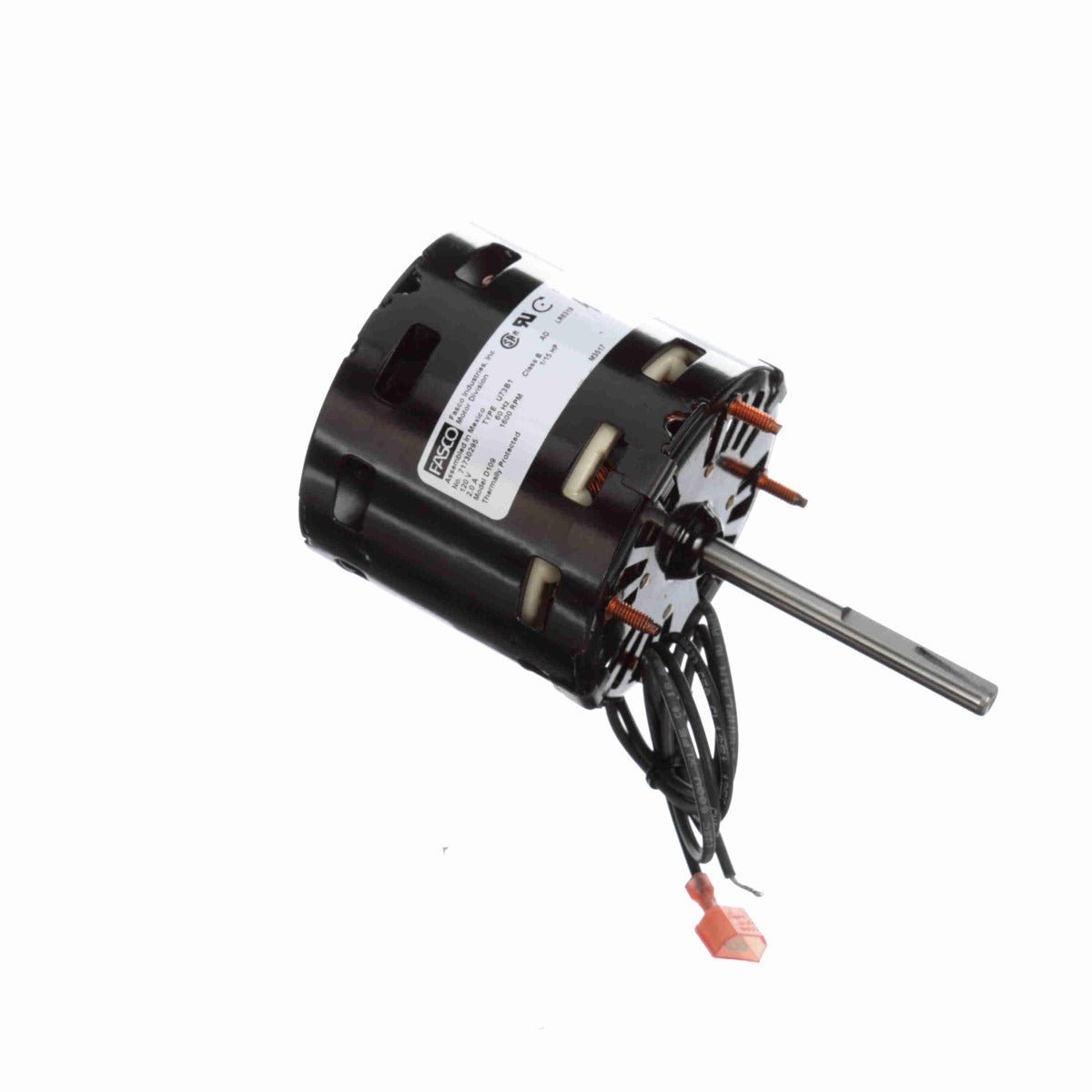

* Image is for reference only

D109 Fasco Motor 1/15 HP, 1600 RPM, 115 V, 1 Phase

SKU: D109
$100.93
Sale $100.93
Description
  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End End-Frame, Open Shell, Enclosed Opposite Shaft End End-Frame, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • (1) 12" Lead, (1) 16" Lead with Quick Connect Spade Terminal
  • Extended Studs Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/15 Hp
Output KW: 0.05 kW Voltage: 120 V
Speed: 1600 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 2.0 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 12 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 6.91 in
Frame Length: 2.82 in Shaft Diameter: 0.313 in
Shaft Extension: 3.00 in

General Specifications

UPC: 815585028055 Weight: 3.80 LB
Packaged Length: 8.00 IN Packaged Width: 3.38 IN
Packaged Height: 3.38 IN Country of Origin: Mexico
