D1071 Fasco Motor 1/6 HP, 1100 RPM, 208-230 V, 1 Phase

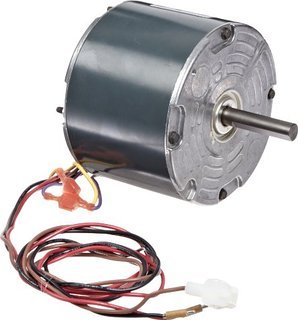

* Image is for reference only

D1071 Fasco Motor 1/6 HP, 1100 RPM, 208-230 V, 1 Phase

SKU: D1071
$195.39
Sale $195.39
Description
  • This item replaces Century 690
  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 42" Leads with Terminal Housing
  • Extended Studs Lead End, Belly Band Mount
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/6 Hp
Output KW: 0.13 kW Voltage: 208/230 V
Speed: 1100 rpm Service Factor: 1
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 0.99 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 3

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Overall Length: 6.02 in
Frame Length: 3.38 in Shaft Diameter: 0.500 in
Shaft Extension: 2.2 in

General Specifications

UPC: 815585027898 Weight: 8.50 LB
Packaged Length: 5.13 IN Packaged Width: 5.13 IN
Packaged Height: 10.00 IN Country of Origin: Mexico
