D1053 Fasco Motor 1/30 HP, 1075 RPM, 265 V, 1 Phase

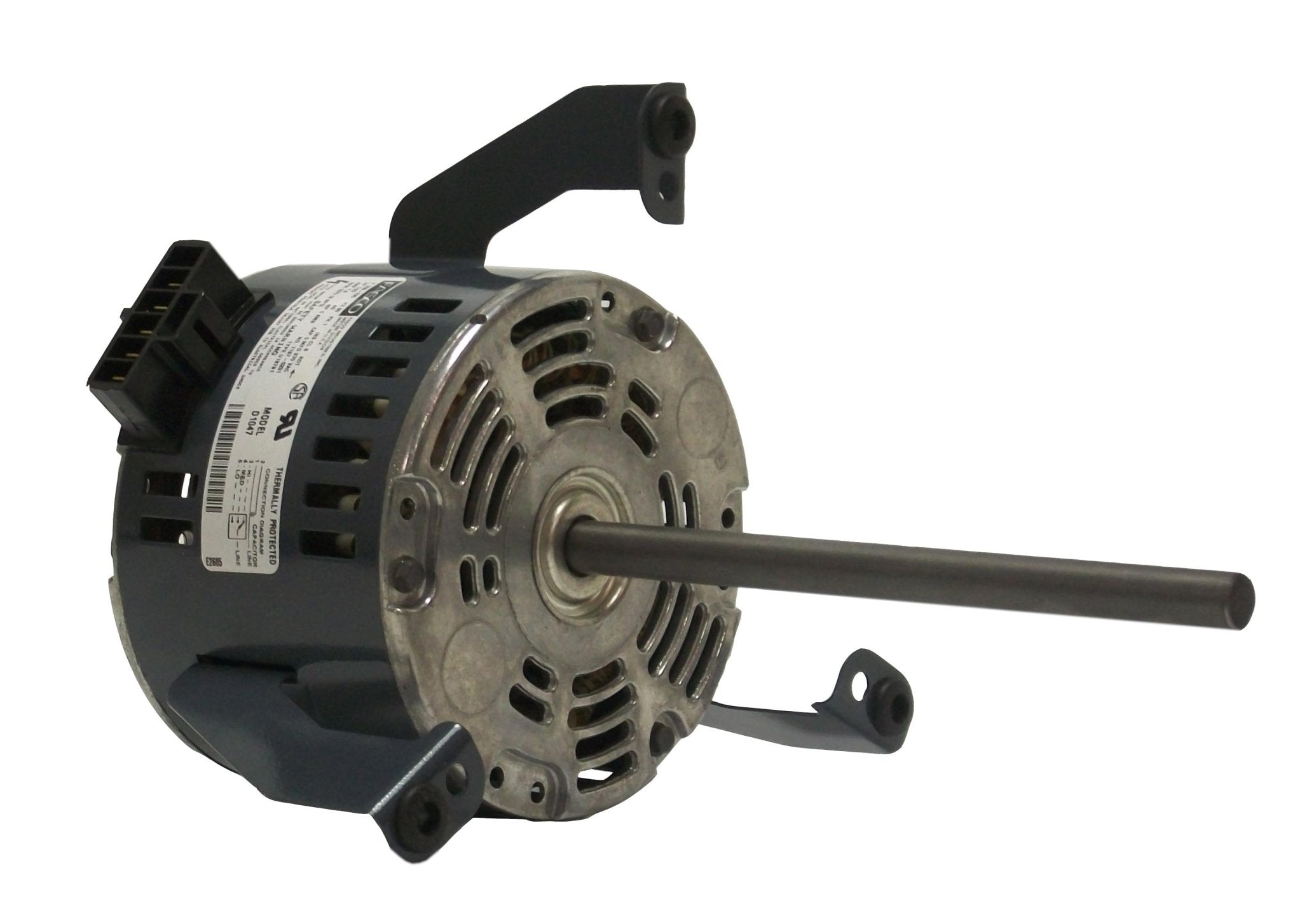

* Image is for reference only

D1053 Fasco Motor 1/30 HP, 1075 RPM, 265 V, 1 Phase

SKU: D1053
$239.39
Sale $239.39
Description
  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 3 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • Terminal Block
  • Flex Mount
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/30 Hp
Output KW: 0.02 kW Voltage: 265 V
Speed: 1075 rpm Service Factor: 1
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 0.38 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 3

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Clockwise Shaft End
Mounting: Lug Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 10.52 in
Frame Length: 3.33 in Shaft Diameter: 0.500 in
Shaft Extension: 7.15 in

General Specifications

UPC: 815585027782 Weight: 9.00 LB
Packaged Length: 11.00 IN Packaged Width: 11.00 IN
Packaged Height: 18.00 IN Country of Origin: Mexico
