D1048 Fasco Motor 1/20 HP, 1075 RPM, 277 V, 1 Phase

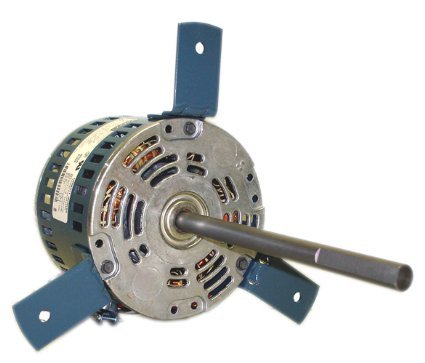

* Image is for reference only

D1048 Fasco Motor 1/20 HP, 1075 RPM, 277 V, 1 Phase

SKU: D1048
$258.80
Sale $258.80
Description
  • OEM Direct Replacement Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 48" Leads
  • Lug Mount
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/20 Hp
Output KW: 0.04 kW Voltage: 277 V
Speed: 1075 rpm Service Factor: 1
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 0.5 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 3

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Clockwise Shaft End
Mounting: Lug Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Flat Overall Length: 11.12 in
Frame Length: 3.38 in Shaft Diameter: 0.500 in
Shaft Extension: 7.25 in

General Specifications

UPC: 815585027737 Weight: 11.80 LB
Packaged Length: 11.00 IN Packaged Width: 11.00 IN
Packaged Height: 18.00 IN Country of Origin: Mexico
