D091 Fasco Motor 1/15 HP, 3000 RPM, 115/230 V, 1 Phase

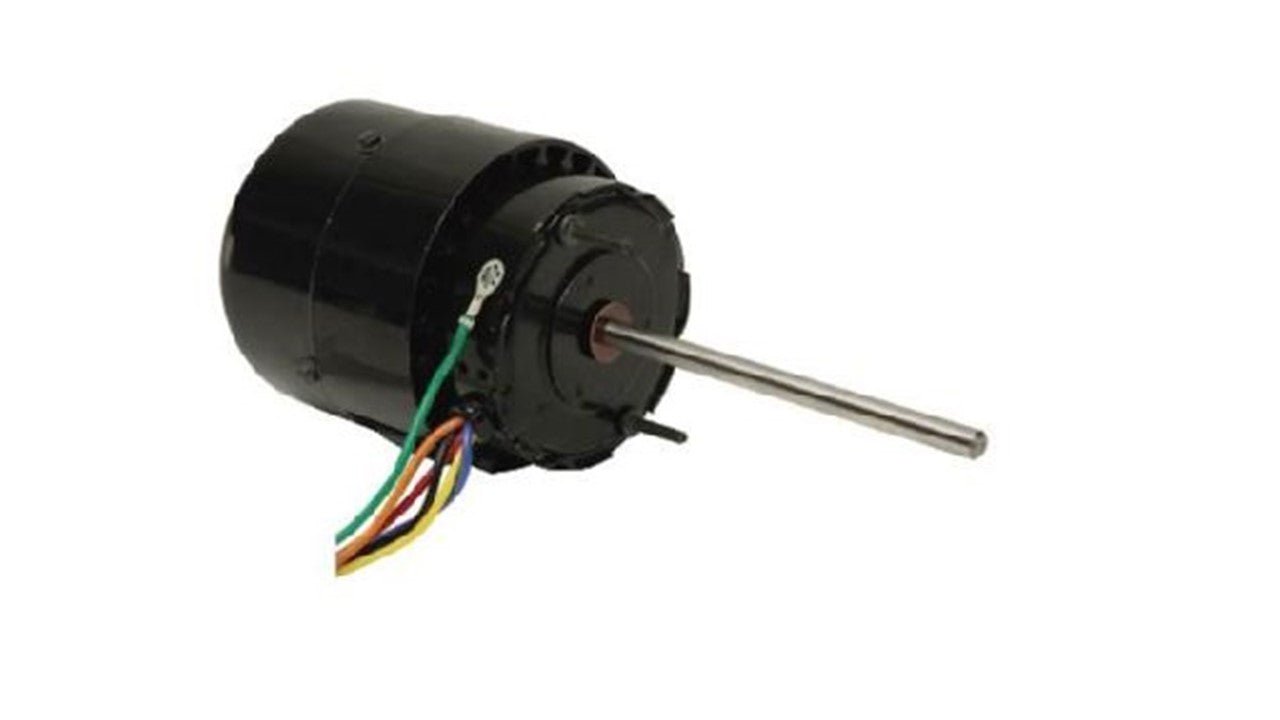

* Image is for reference only

D091 Fasco Motor 1/15 HP, 3000 RPM, 115/230 V, 1 Phase

SKU: D091
$179.87
Sale $179.87
Description
  • Fan and Blower Duty Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Totally Enclosed, Internal Fan, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16" Diameter Shaft with Flat
  • 20" Leads
  • Belly Band
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/15 Hp
Output KW: 0.05 kW Voltage: 115/230 V
Speed: 3000 rpm Service Factor: 1
Frame: 3.3 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 2.00/1.00 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: N
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 2 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 9.55 in
Frame Length: 4.50 in Shaft Diameter: 0.312 in
Shaft Extension: 5.0 in

General Specifications

UPC: 815585027409 Weight: 5.00 LB
Packaged Length: 4.13 IN Packaged Width: 4.13 IN
Packaged Height: 12.63 IN Country of Origin: Mexico
