Home » B22507 Fasco Blower 115CFM, 3100 RPM, 115 V, 1 Phase
B22507 Fasco Blower 115CFM, 3100 RPM, 115 V, 1 Phase

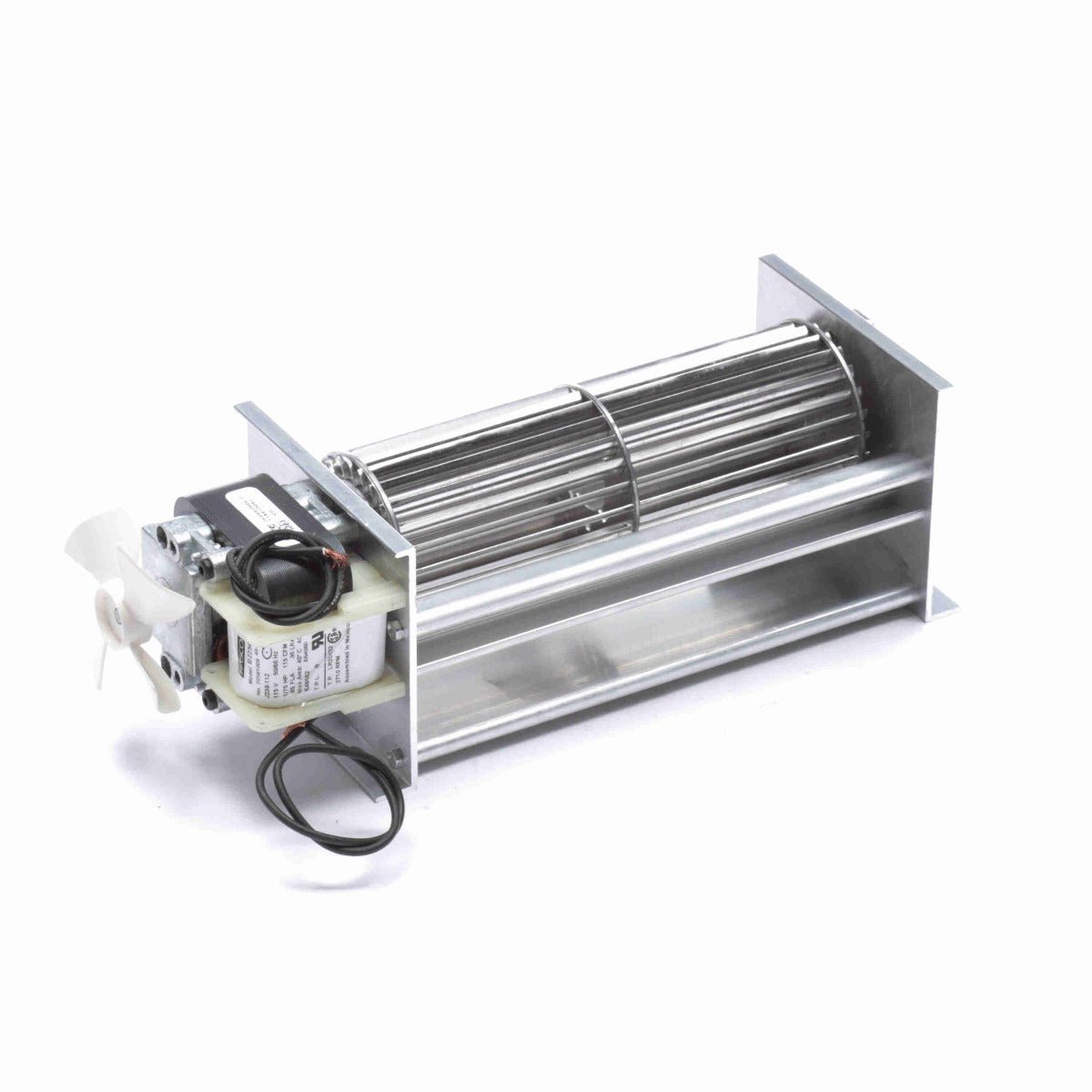

* Image is for reference only

B22507 Fasco Blower 115CFM, 3100 RPM, 115 V, 1 Phase

SKU: B22507
$209.63
Sale $209.63
Description
  • Transflo / Crossflow Blower
  • C-Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 12-10" Lead with Strip
  • 115 CFM
Specifications

Nameplate Specifications

Voltage: 115 V Motor Type: Shaded Pole
Thermal Protection: Thermally Speed: 2710 rpm
Current: 0.85 A Number of Speeds: 1
Frequency: 50/60 Hz Phase: 1
Ambient Temperature: 40 °C UL: Yes
Insulation Class: B CSA: Yes

Technical Specifications

Blower Outlet Shape: Rectangle Motor Enclosure: Open
Blower Outlet Flange: No Bearing Type: Sleeve

General Specifications

UPC: 815585026952 Weight: 4.00 LB
Packaged Length: 14.00 IN Packaged Width: 5.63 IN
Packaged Height: 5.63 IN Country of Origin: Mexico
