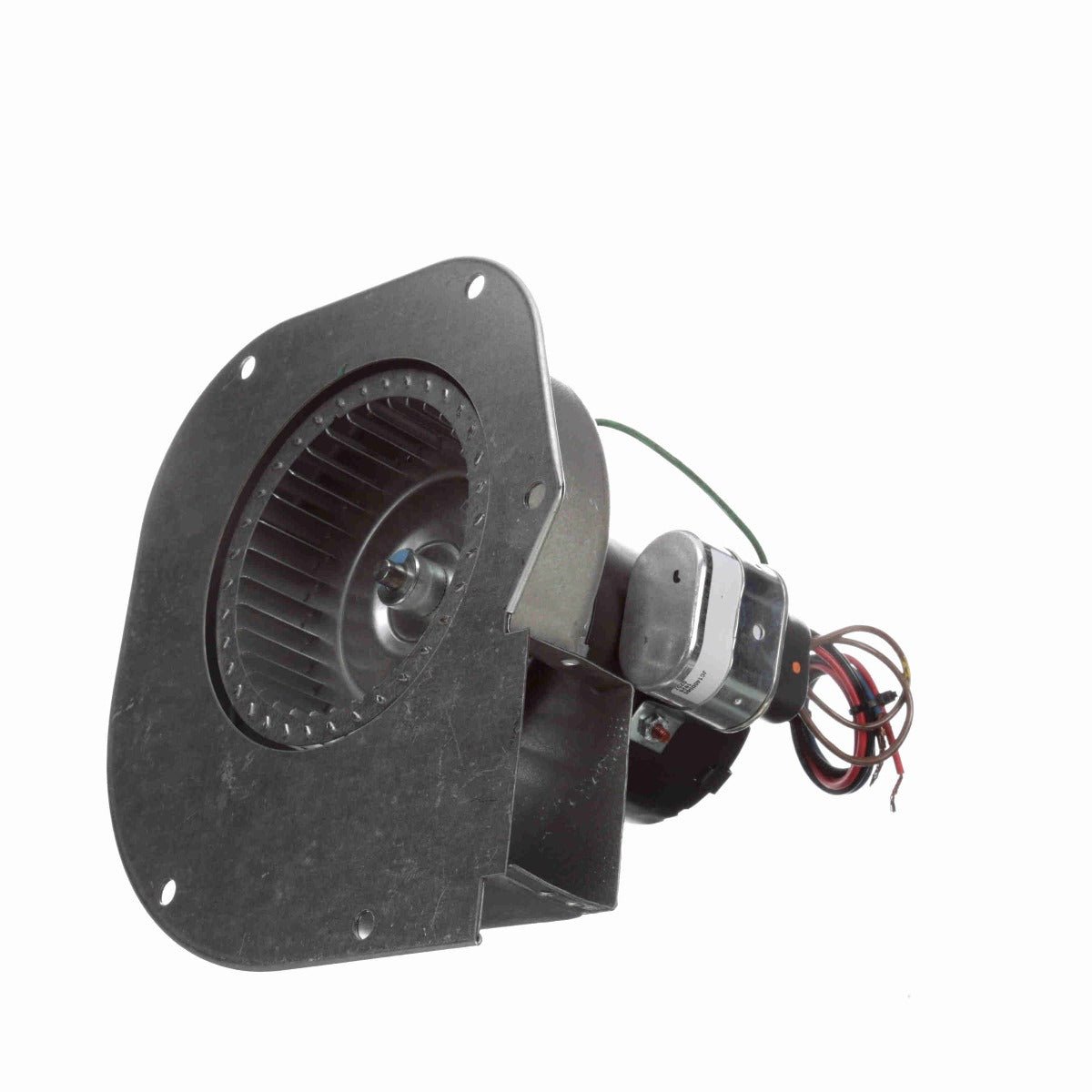

A370 Fasco Blower, 2920 RPM, 230 V, 1 Phase

* Image is for reference only

A370 Fasco Blower, 2920 RPM, 230 V, 1 Phase

SKU: A370
$309.91
Sale $309.91
Description
  • A370
    OEM NAME: TRANE
  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 14-12" Leads with Strip
Specifications

Nameplate Specifications

Voltage: 208-230 V Motor Type: Permanent Split Capacitor
Thermal Protection: Thermally Speed: 2920/1530 rpm
Current: 0.18 A Number of Speeds: 2
Frequency: 60 Hz Phase: 1
Ambient Temperature: 40 °C UL: No
Insulation Class: B CSA: No

Technical Specifications

Blower Outlet Shape: Rectangle Motor Enclosure: Open
Blower Outlet Flange: No Bearing Type: Ball

General Specifications

UPC: 815585026785 Weight: 5.40 LB
Packaged Length: 11.38 IN Packaged Width: 8.25 IN
Packaged Height: 7.06 IN Country of Origin: Mexico
