Home » A244 Fasco Draft Inducer Blower | 3300 RPM, 208-230V, Single Phase

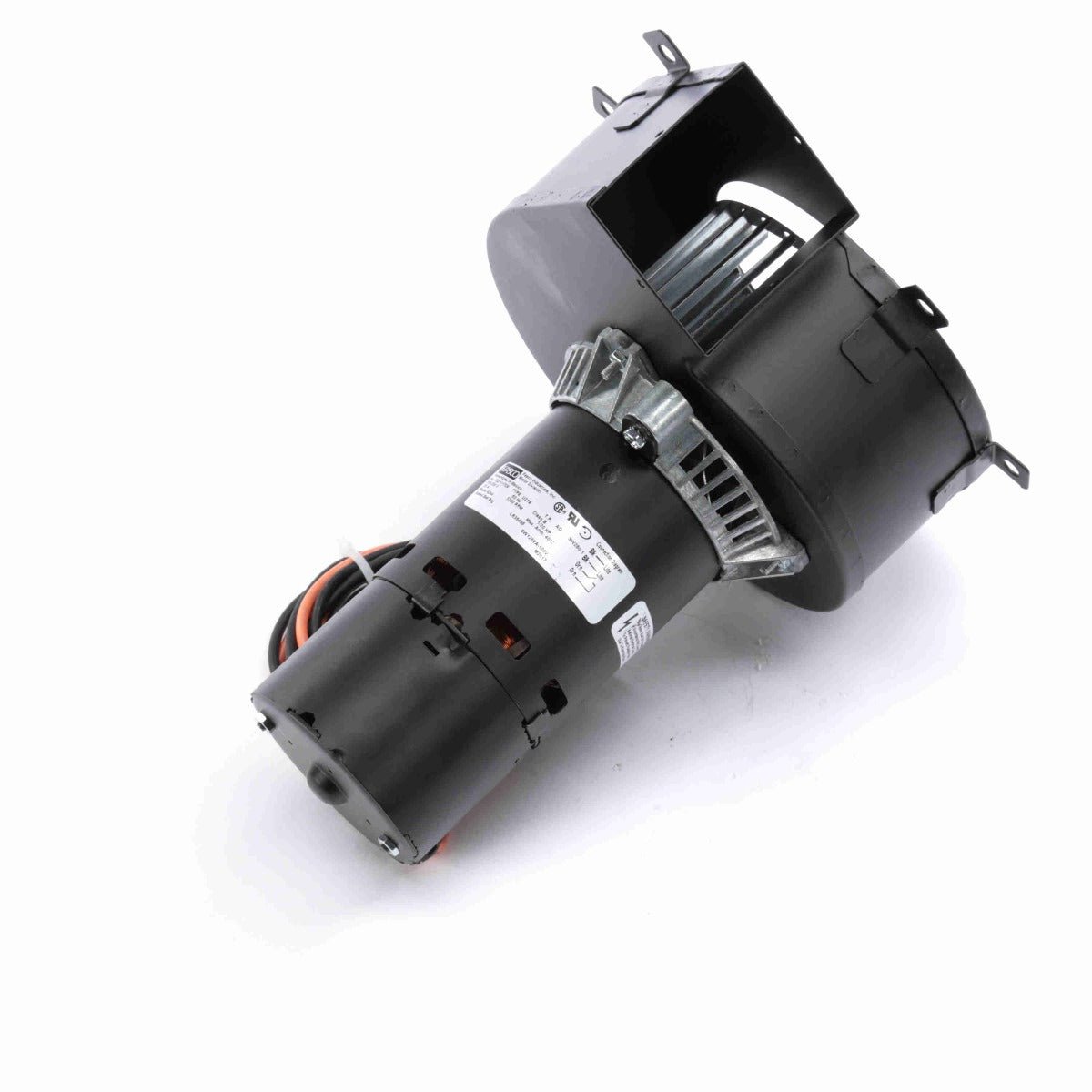

A244 Fasco Blower

* Image is for reference only

A244 Fasco Draft Inducer Blower | 3300 RPM, 208-230V, Single Phase

SKU: A244
$370.73
Sale $370.73
Description

A244
OEM NAME: RHEEM-RUUD

  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 39" Leads with Spade terminals
Specifications

Nameplate Specifications

Voltage: 208-230 V Motor Type: Shaded Pole
Thermal Protection: Thermally Speed: 3300 rpm
Current: 0.85 A Number of Speeds: 1
Frequency: 60 Hz Phase: 1
Ambient Temperature: 40 °C UL: Yes
Insulation Class: B CSA: Yes

Technical Specifications

Blower Outlet Shape: Rectangle Motor Enclosure: Open
Blower Outlet Flange: No Bearing Type: Ball

General Specifications

UPC: 815585026075 Weight: 9.00 LB
Packaged Length: 13.88 IN Packaged Width: 10.13 IN
Packaged Height: 10.00 IN Country of Origin: Mexico
