A242 Fasco Blower, 3400 RPM, 115 V, 1 Phase

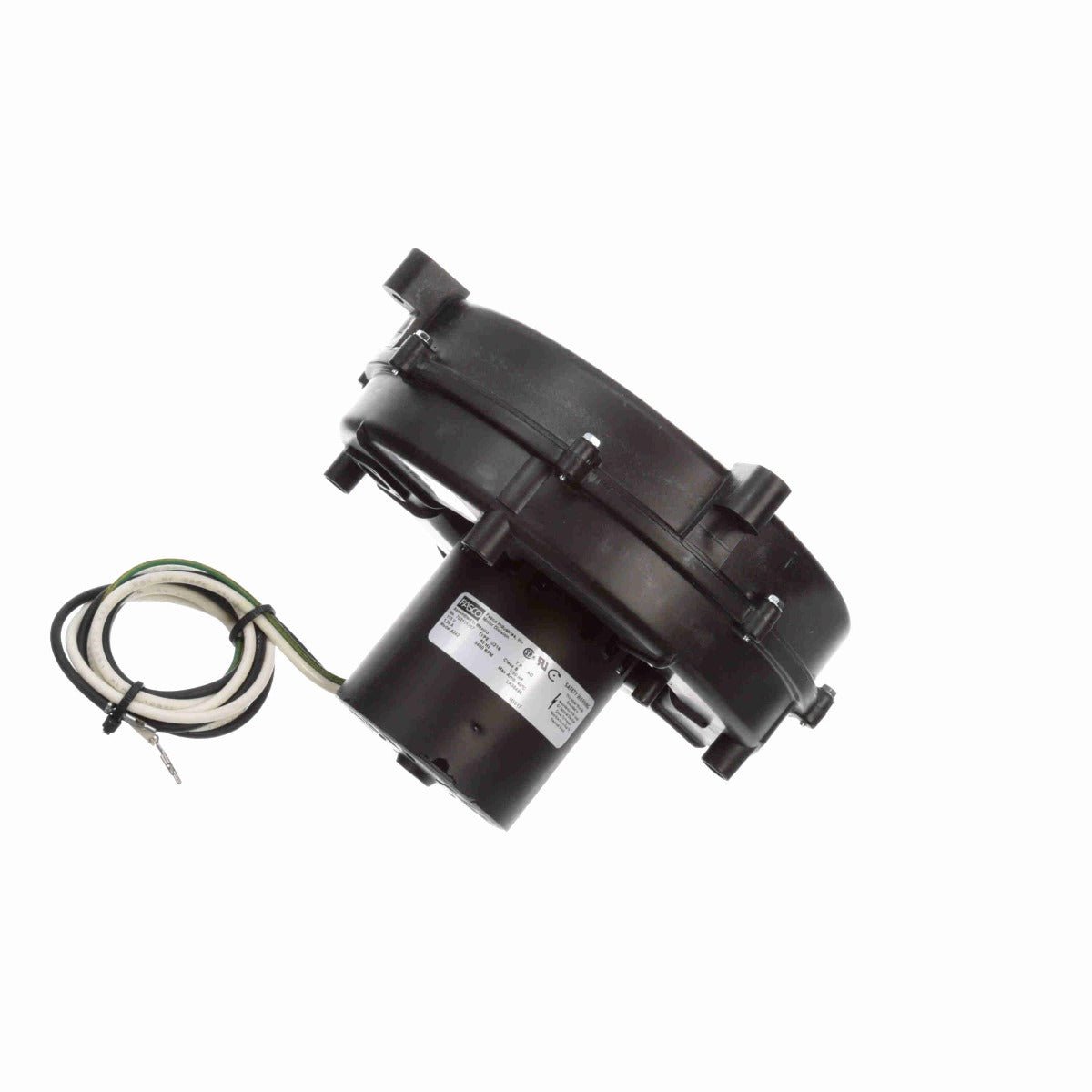

* Image is for reference only

A242 Fasco Blower, 3400 RPM, 115 V, 1 Phase

SKU: A242
$317.03
Sale $317.03
Description

A242
OEM NAME: RHEEM-RUUD

  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 39" Leads with Pin Terminals
Specifications

Nameplate Specifications

Voltage: 115 V Motor Type: Shaded Pole
Thermal Protection: Thermally Speed: 3400 rpm
Current: 1.36 A Number of Speeds: 1
Frequency: 60 Hz Phase: 1
Ambient Temperature: 40 °C UL: Yes
Insulation Class: B CSA: Yes

Technical Specifications

Blower Outlet Shape: Round Motor Enclosure: Open
Blower Outlet Flange: No Bearing Type: Sleeve

General Specifications

UPC: 815585026051 Weight: 4.40 LB
Packaged Length: 10.63 IN Packaged Width: 10.25 IN
Packaged Height: 9.75 IN Country of Origin: Mexico
