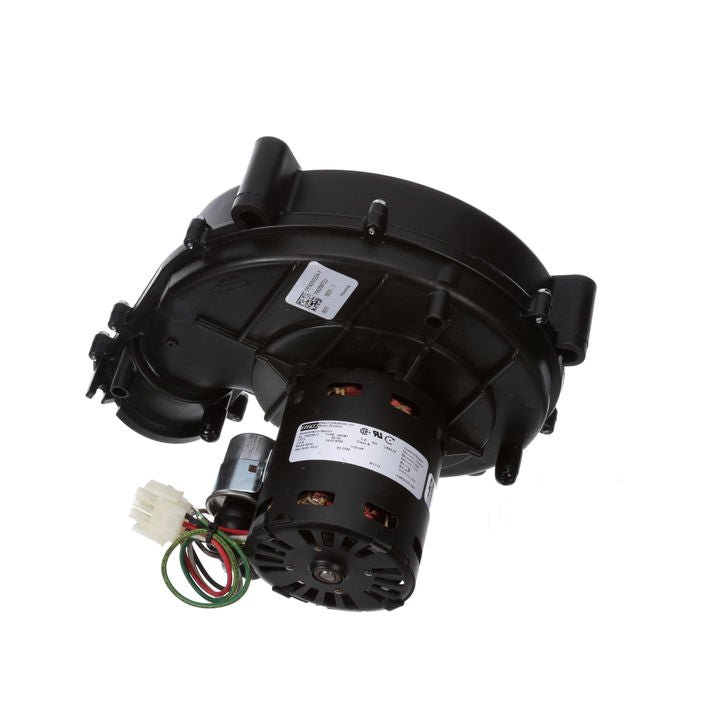

A230 Fasco Blower, 3450 RPM, 115 V, 1 Phase

* Image is for reference only

A230 Fasco Blower, 3450 RPM, 115 V, 1 Phase

SKU: A230
$533.78
Sale $533.78
Description

A230
OEM NAME: YORK

  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 6" Leads with Socket Terminal
  • 85 CFM
Specifications

Nameplate Specifications

Voltage: 115 V Motor Type: Permanent Split Capacitor
Thermal Protection: Thermally Speed: 3450 rpm
Current: 0.8 A Number of Speeds: 2
Frequency: 60 Hz Phase: 1
Ambient Temperature: 40 °C UL: Yes
Insulation Class: B CSA: Yes

Technical Specifications

Blower Outlet Shape: Round Motor Enclosure: Open
Blower Outlet Flange: Yes Bearing Type: Sleeve

General Specifications

UPC: 815585025900 Weight: 12.40 LB
Packaged Length: 10.63 IN Packaged Width: 10.25 IN
Packaged Height: 9.75 IN Country of Origin: Mexico
