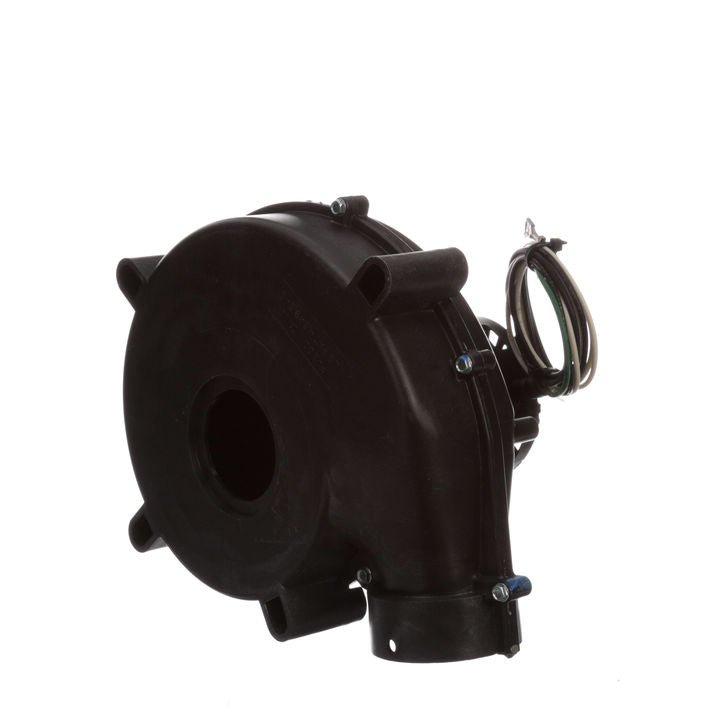

A168 Fasco Draft Inducer Blower

* Image is for reference only

A168 Fasco Draft Inducer Blower | 1/20HP, 101CFM, 3450 RPM, 115V, Single Phase

SKU: A168
$383.02
Sale $383.02
Description

A168
OEM NAME: YORK

  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 43" Leads with Spade terminals
  • 90 CFM
Specifications

Nameplate Specifications

Voltage: 115 V Motor Type: Permanent Split Capacitor
Thermal Protection: Thermally Speed: 3450 rpm
Current: 7 A Number of Speeds: 1
Frequency: 60 Hz Phase: 1
Ambient Temperature: 40 °C UL: Yes
Insulation Class: B CSA: Yes

Technical Specifications

Blower Outlet Shape: Round Motor Enclosure: Open
Blower Outlet Flange: No Bearing Type: Ball

General Specifications

UPC: 815585024941 Weight: 6.00 LB
Packaged Length: 10.63 IN Packaged Width: 10.25 IN
Packaged Height: 9.75 IN Country of Origin: Mexico
