A163 Fasco Blower, 3400 RPM, 115 V, 1 Phase

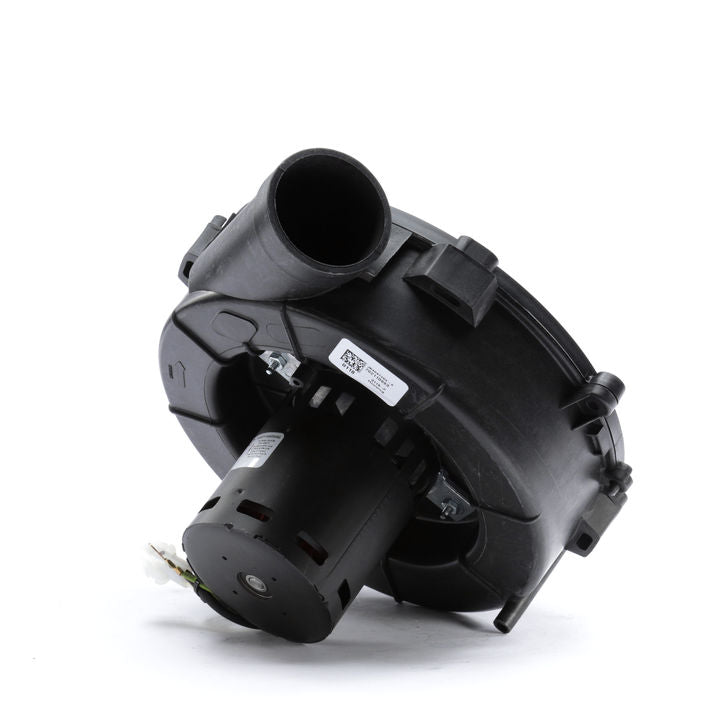

* Image is for reference only

A163 Fasco Blower, 3400 RPM, 115 V, 1 Phase

SKU: A163
$193.45
Sale $193.45
Description

A163 ALTERNATE FB-RFB547
OEM NAME: LENNOX

  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 7" Leads with Socket Terminals
Specifications

Nameplate Specifications

Voltage: 115 V Motor Type: Shaded Pole
Thermal Protection: Thermally Speed: 3300 rpm
Current: 1.8 A Number of Speeds: 1
Frequency: 60 Hz Phase: 1
Ambient Temperature: 40 °C UL: Yes
Insulation Class: B CSA: Yes

Technical Specifications

Blower Outlet Shape: Round Motor Enclosure: Open
Blower Outlet Flange: No Bearing Type: Ball

General Specifications

UPC: 815585024835 Weight: 7.00 LB
Packaged Length: 14.00 IN Packaged Width: 13.25 IN
Packaged Height: 11.75 IN Country of Origin: Mexico
