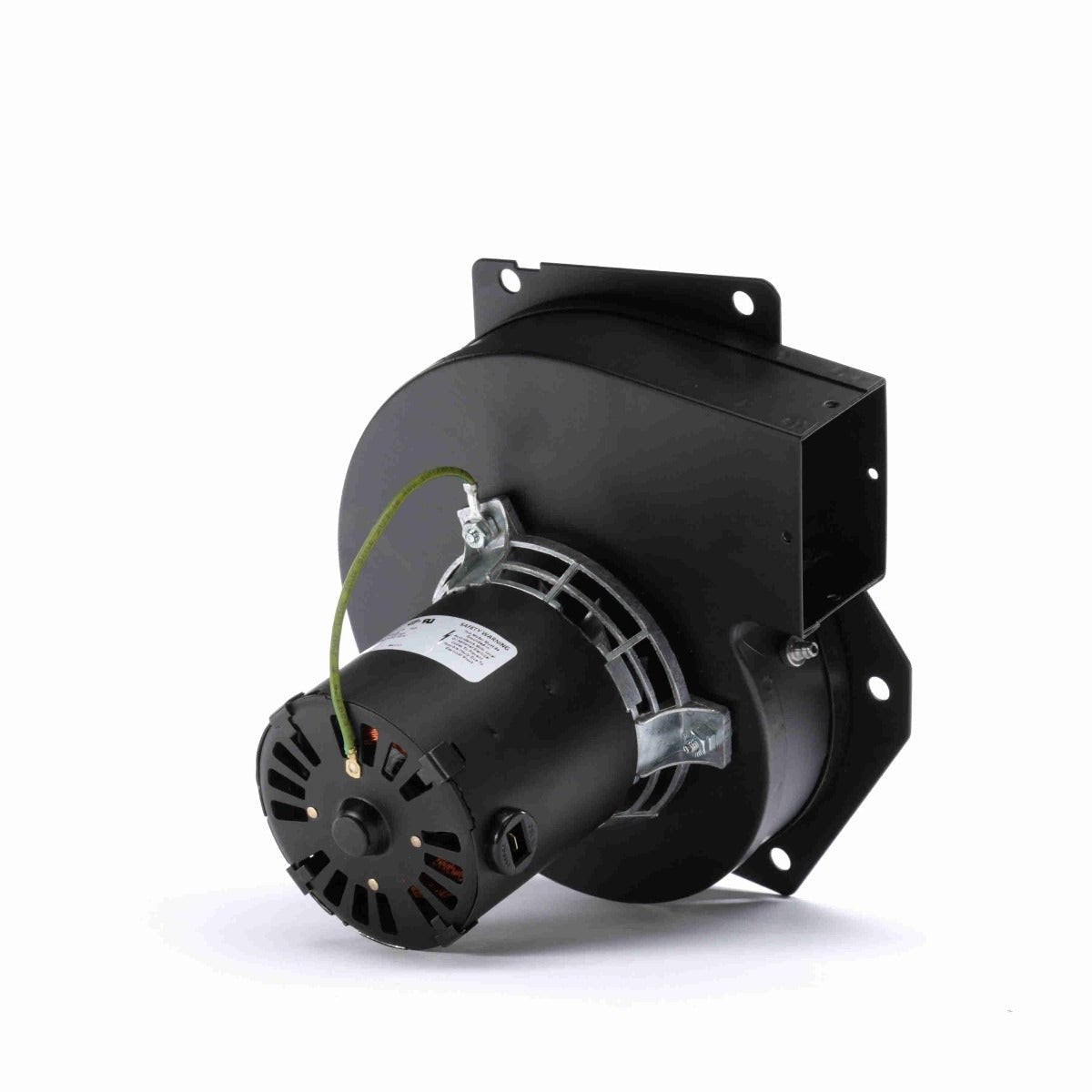

A148 Fasco Blower, 3000 RPM, 230 V, 1 Phase

* Image is for reference only

A148 Fasco Blower, 3000 RPM, 230 V, 1 Phase

SKU: A148
$212.22
Sale $212.22
Description

A148
OEM NAME: HEIL QUAKER, INTERCITY PRODUCTS

  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 6.5-5.5" Leads
Specifications

Nameplate Specifications

Voltage: 208-230 V Motor Type: Shaded Pole
Thermal Protection: Thermally Speed: 3000 rpm
Current: 0.5 A Number of Speeds: 1
Frequency: 60 Hz Phase: 1
Ambient Temperature: 40 °C UL: Yes
Insulation Class: B CSA: Yes

Technical Specifications

Blower Outlet Shape: Rectangle Motor Enclosure: Open
Blower Outlet Flange: No Bearing Type: Sleeve

General Specifications

UPC: 815585026518 Weight: 5.40 LB
Packaged Length: 11.38 IN Packaged Width: 8.25 IN
Packaged Height: 7.06 IN Country of Origin: Mexico
