Home » A138 Fasco Draft Inducer Blower | 1/70HP, 70CFM, 3000 RPM, 115V, Single Phase
A138 Fasco Draft Inducer Blower

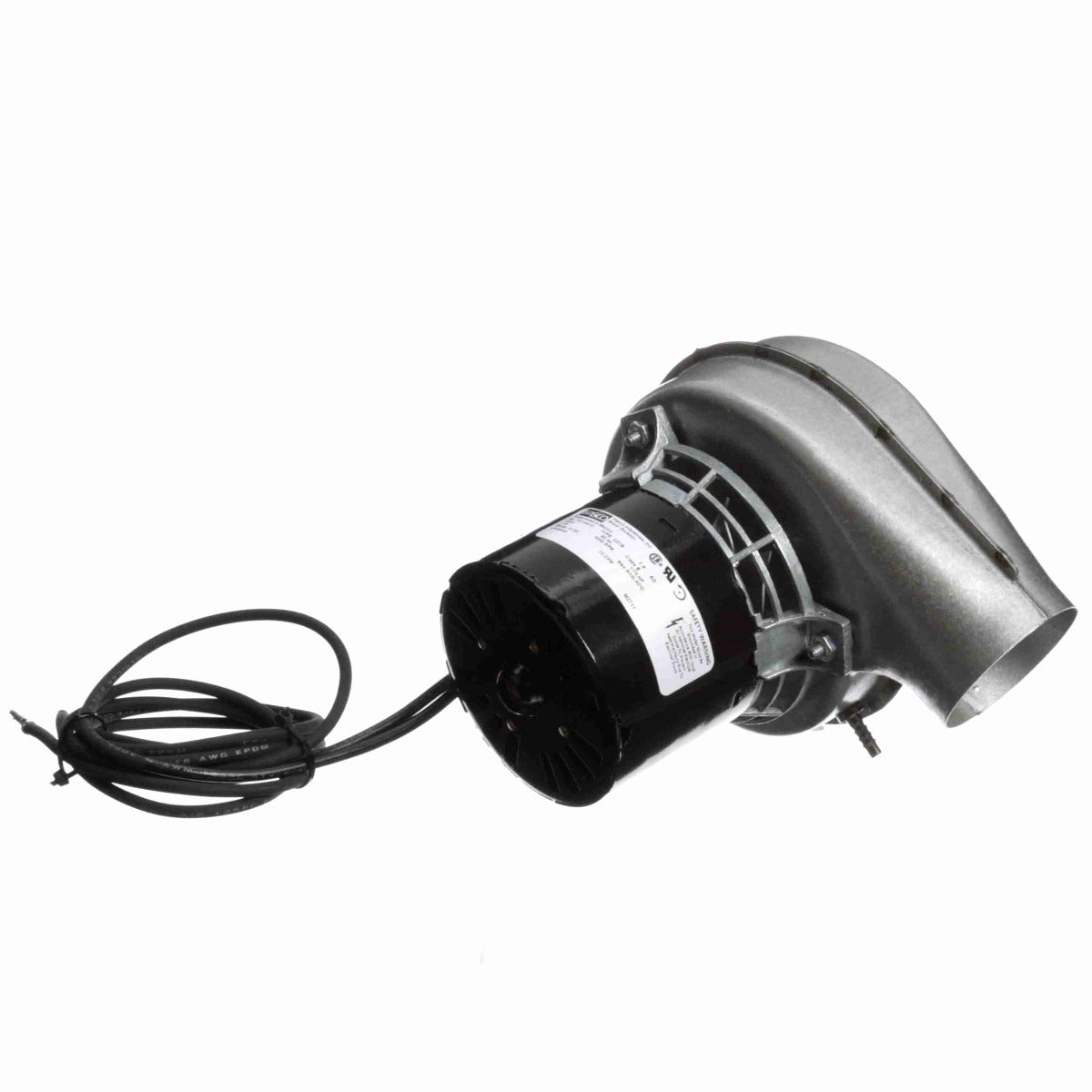

* Image is for reference only

A138 Fasco Draft Inducer Blower | 1/70HP, 70CFM, 3000 RPM, 115V, Single Phase

SKU: A138
$234.21
Sale $234.21
Description

A138
OEM NAME: LENNOX

  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 37" Leads with Pin terminals
  • 70 CFM
Specifications

Nameplate Specifications

Voltage: 120 V Motor Type: Shaded Pole
Thermal Protection: Thermally Speed: 3000 rpm
Current: 0.7 A Number of Speeds: 1
Frequency: 60 Hz Phase: 1
Ambient Temperature: 40 °C UL: Yes
Insulation Class: B CSA: Yes

Technical Specifications

Blower Outlet Shape: Round Motor Enclosure: Open
Blower Outlet Flange: No Bearing Type: Sleeve

General Specifications

UPC: 815585026143 Weight: 3.60 LB
Packaged Length: 6.75 IN Packaged Width: 6.13 IN
Packaged Height: 7.13 IN Country of Origin: Mexico
