Home » A131 Fasco Blower, 3000 RPM, 115 V, 1 Phase

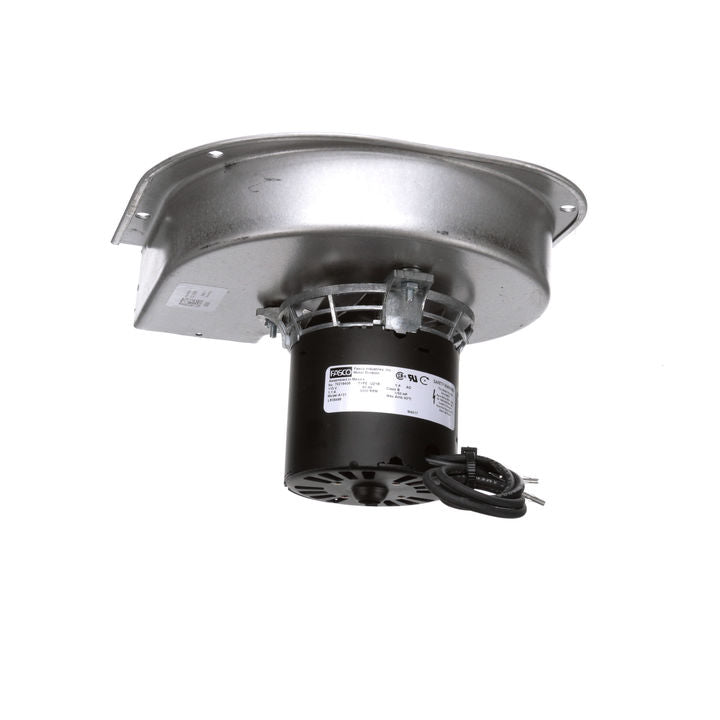

A131 Fasco Blower, 3000 RPM, 115 V, 1 Phase

* Image is for reference only

A131 Fasco Blower, 3000 RPM, 115 V, 1 Phase

SKU: A131
$176.63
Sale $176.63
Description

A131
OEM NAME: NORDYNE

  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 11" Lead with Socket Terminals
Specifications

Nameplate Specifications

Voltage: 115 V Motor Type: Shaded Pole
Thermal Protection: Thermally Speed: 3000 rpm
Current: 1.1 A Number of Speeds: 1
Frequency: 60 Hz Phase: 1
Ambient Temperature: 40 °C UL: Yes
Insulation Class: B CSA: Yes

Technical Specifications

Blower Outlet Shape: Rectangle Motor Enclosure: Open
Blower Outlet Flange: No Bearing Type: Sleeve

General Specifications

UPC: 815585025979 Weight: 6.77 LB
Packaged Length: 11.38 IN Packaged Width: 8.25 IN
Packaged Height: 7.06 IN Country of Origin: Mexico
