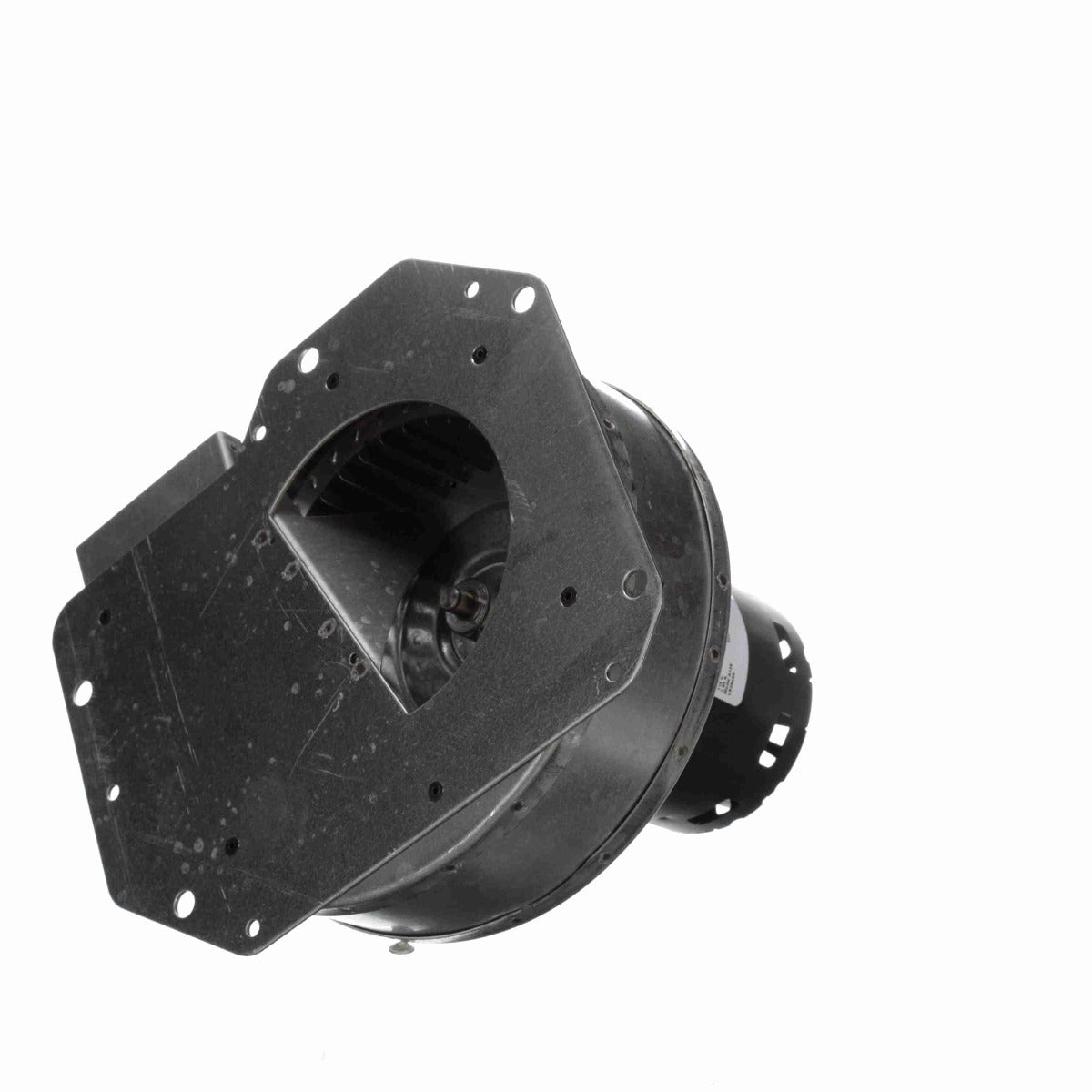

A129 Fasco Blower, 3250 RPM, 115 V, 1 Phase
SKU:
A129
Regular price
$297.62
Regular price
Sale
Sale price
$297.62
- Description
- Specifications
Description
A129
OEM NAME: AMANA, GOODMAN
- OEM Direct Replacement - Draft Inducer Blower
- 3.3" Diameter
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 11" Leads with (1) Spade Terminal & (1) Stripped end
Specifications
Nameplate Specifications
| Voltage: | 115 V | Motor Type: | Shaded Pole |
| Thermal Protection: | Thermally | Speed: | 3250 rpm |
| Current: | 1.95 A | Number of Speeds: | 1 |
| Frequency: | 60 Hz | Phase: | 1 |
| Ambient Temperature: | 40 °C | UL: | Yes |
| Insulation Class: | B | CSA: | Yes |
Technical Specifications
| Blower Outlet Shape: | Rectangle | Motor Enclosure: | Open |
| Blower Outlet Flange: | No | Bearing Type: | Sleeve |
General Specifications
| UPC: | 815585025955 | Weight: | 6.60 LB |
| Packaged Length: | 11.38 IN | Packaged Width: | 8.25 IN |
| Packaged Height: | 8.25 IN | Country of Origin: | Mexico |
