A1200 Fasco Blower 1200CFM, 1500 RPM, 115/208-230 V, 1 Phase

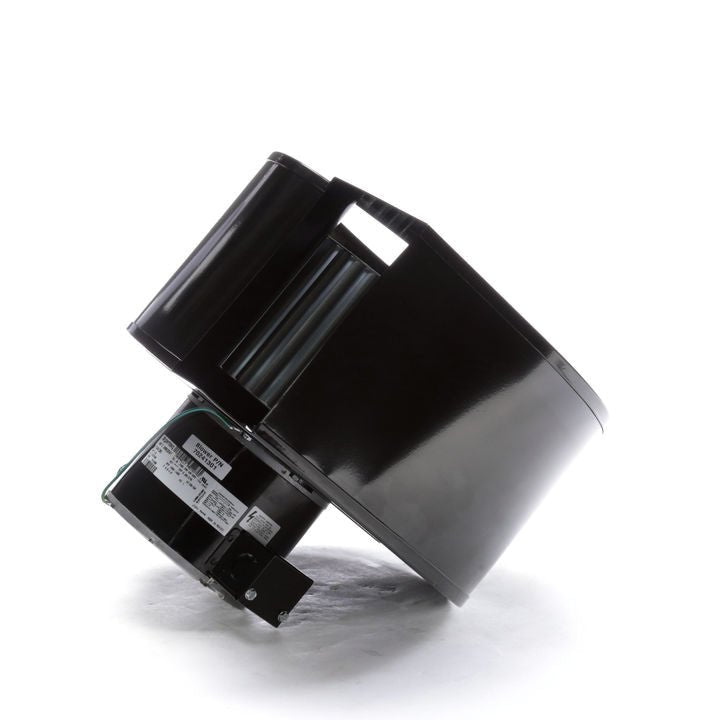

* Image is for reference only

A1200 Fasco Blower 1200CFM, 1500 RPM, 115/208-230 V, 1 Phase

SKU: A1200
$595.89
Sale $595.89
Description
  • Centrifugal Blower
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 7" Leads with Stripped ends
  • 1175 CFM
Specifications

Nameplate Specifications

Voltage: 115/230 V Motor Type: Permanent Split Capacitor
Thermal Protection: Thermally Speed: 1550/1450 rpm
Current: 8.0/4.0 A Number of Speeds: 2
Frequency: 60 Hz Phase: 1
Ambient Temperature: 40 °C UL: No
Insulation Class: B CSA: No

Technical Specifications

Blower Outlet Shape: Rectangle Motor Enclosure: Open
Blower Outlet Flange: No Bearing Type: Sleeve

General Specifications

UPC: 815585025832 Weight: 26.80 LB
Packaged Length: 19.00 IN Packaged Width: 17.00 IN
Packaged Height: 15.00 IN Country of Origin: Mexico
