A067 Fasco Blower, 3000 RPM, 115 V, 1 Phase

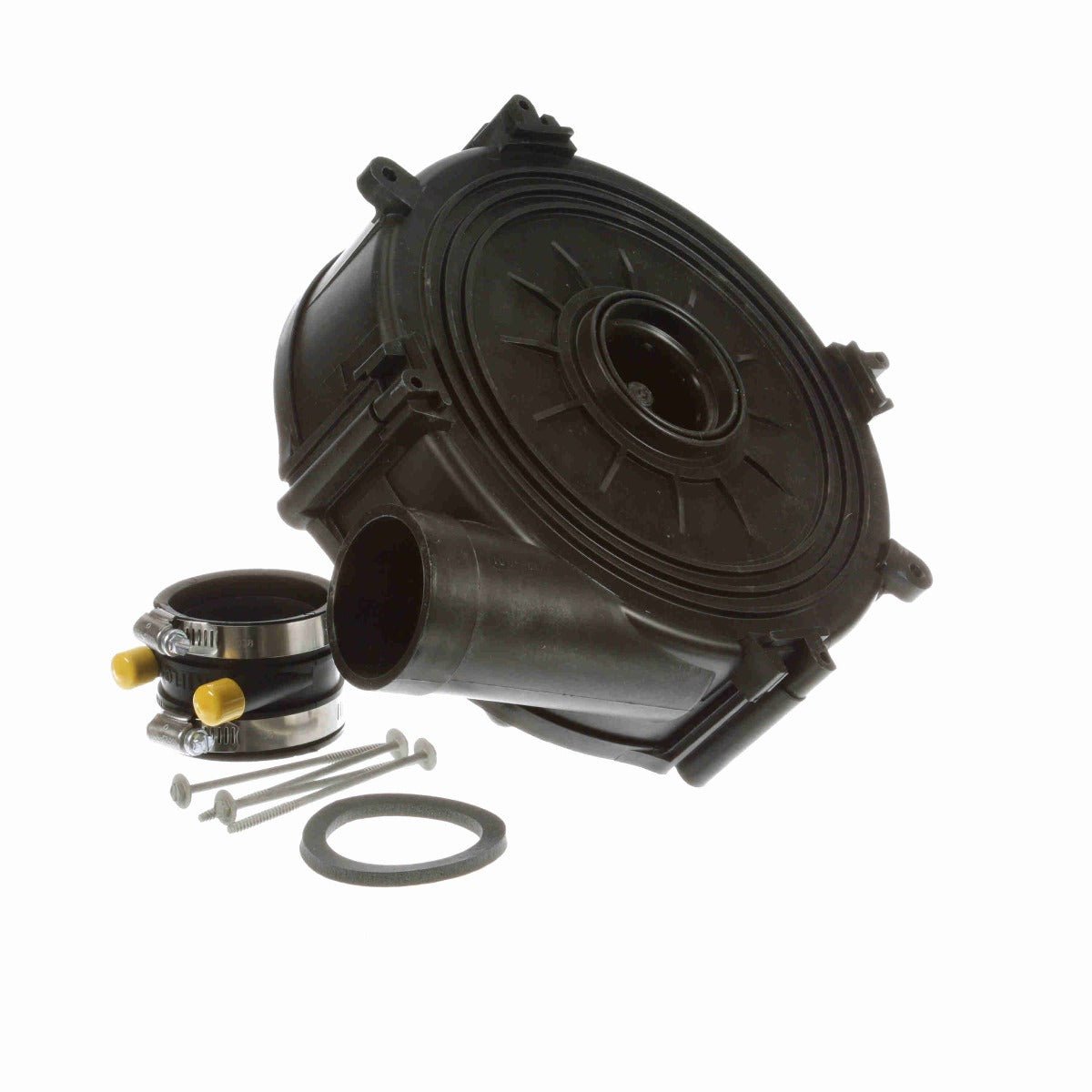

* Image is for reference only

A067 Fasco Blower, 3000 RPM, 115 V, 1 Phase

SKU: A067
$187.63
Sale $187.63
Description

A067 ALTERNATE FB-RFB330
OEM NAME: INTERCITY PRODUCTS

  • OEM Direct Replacement - Draft Inducer Blower
  • C-Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 20" Leads with Spade Terminals
Specifications

Nameplate Specifications

Voltage: 115 V Motor Type: Shaded Pole
Thermal Protection: Thermally Speed: 3000 rpm
Current: 2.6 A Number of Speeds: 1
Frequency: 60 Hz Phase: 1
Ambient Temperature: 40 °C UL: Yes
Insulation Class: B CSA: Yes

Technical Specifications

Blower Outlet Shape: Round Motor Enclosure: Open
Blower Outlet Flange: No Bearing Type: Ball

General Specifications

UPC: 815585025511 Weight: 6.80 LB
Packaged Length: 12.79 IN Packaged Width: 12.79 IN
Packaged Height: 8.54 IN Country of Origin: Mexico
