D535 Fasco Motor 1/25 HP, 1800 RPM, 115 V, 1 Phase

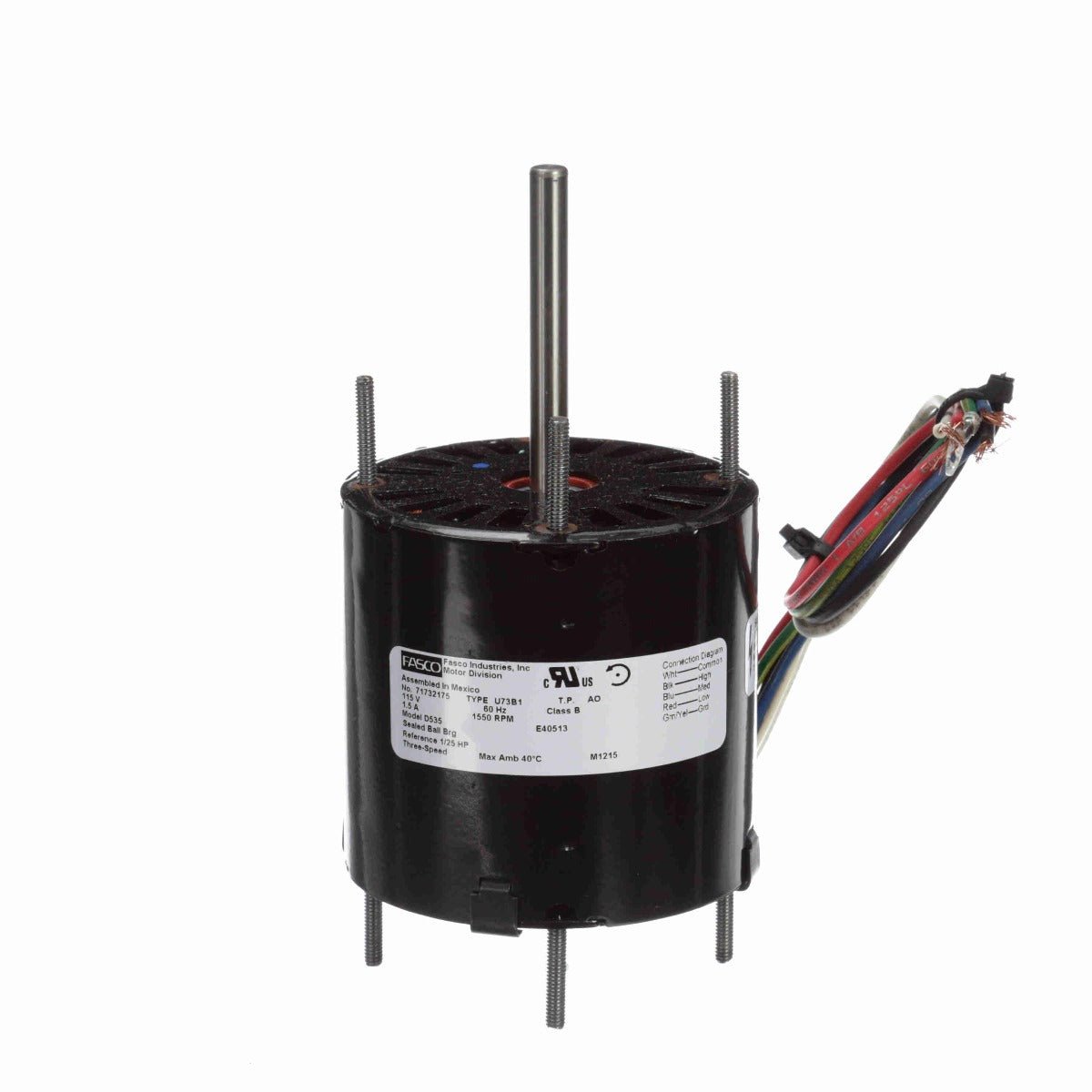

* Image is for reference only

D535 Fasco Motor 1/25 HP, 1800 RPM, 115 V, 1 Phase

SKU: D535
$121.64
Sale $121.64
Description
  • Fan and Blower Duty Motor
  • 3.3" Diameter
  • 1.8-1.3-1.0 AMPS
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16" Diameter Shaft with Flat
  • 12" Leads
  • Extended Studs Shaft End and Opposite Shaft End
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/25 Hp
Output KW: 0.03 kW Voltage: 115 V
Speed: 1550 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.50 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: N
CE: N Number of Speeds: 3

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 5.84 in
Frame Length: 3.07 in Shaft Diameter: 0.312 in
Shaft Extension: 2.5 in

General Specifications

UPC: 818508020952 Weight: 4.46 LB
Packaged Length: 8.00 IN Packaged Width: 3.88 IN
Packaged Height: 3.38 IN Country of Origin: Mexico
