50769-D230 Fasco Blower 480CFM, 1200 RPM, 240 V, 1 Phase

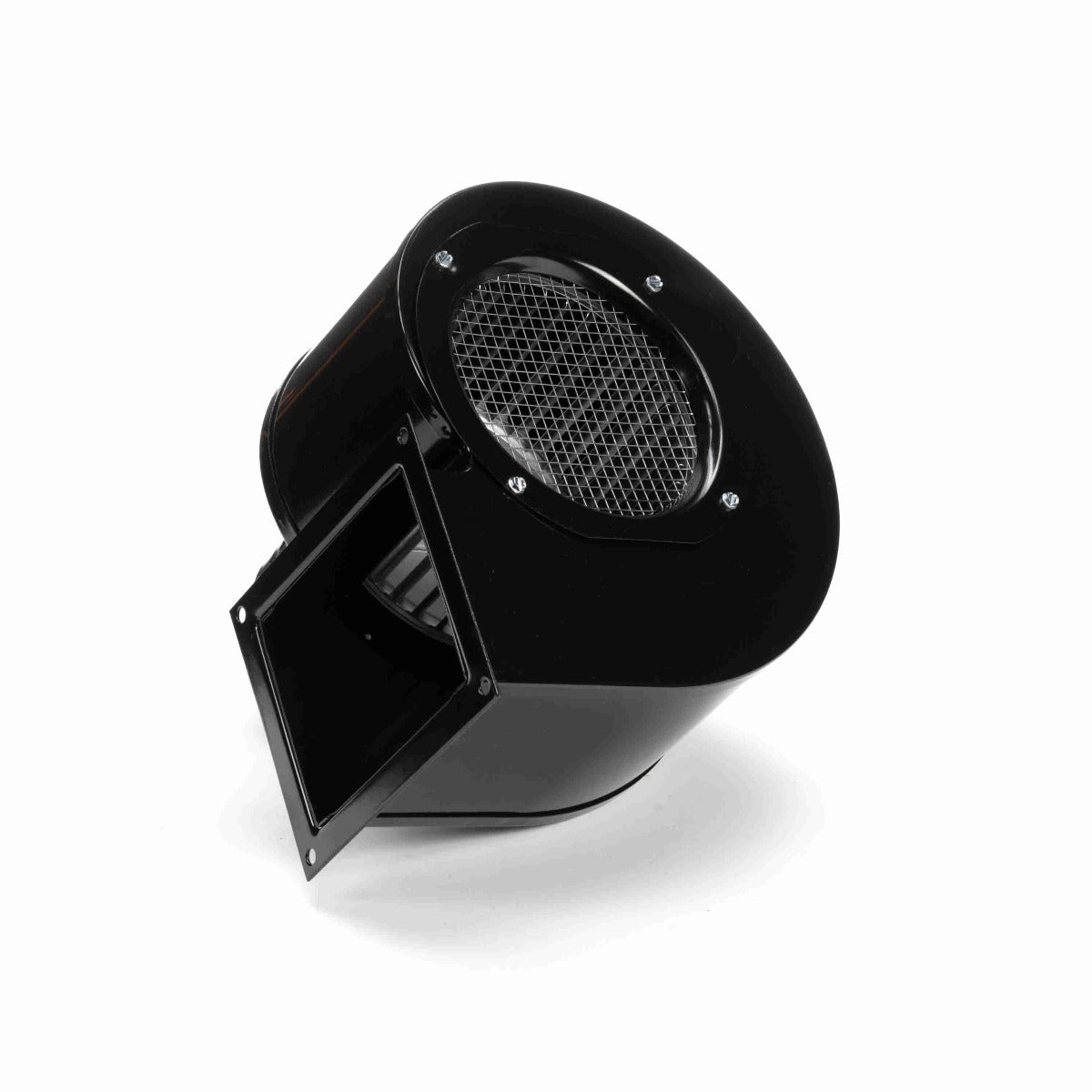

* Image is for reference only

50769-D230 Fasco Blower 480CFM, 1200 RPM, 240 V, 1 Phase

SKU: 50769-D230
$425.73
Sale $425.73
Description

Centrifugal Blower

  • 4.4" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 19" Leads with Stripped ends
  • 500 CFM
Specifications

Nameplate Specifications

Voltage: 230 V Motor Type: Shaded Pole
Thermal Protection: Thermally Speed: 1350 rpm
Current: 1.6/1.0 A Number of Speeds: 2
Frequency: 50/60 Hz Phase: 1
Ambient Temperature: 40 °C UL: Yes
Insulation Class: B CSA: Yes

Technical Specifications

Blower Outlet Shape: Rectangle Motor Enclosure: Open
Blower Outlet Flange: Yes Bearing Type: Sleeve

General Specifications

UPC: 815585024590 Weight: 6.40 LB
Packaged Length: 11.88 IN Packaged Width: 10.31 IN
Packaged Height: 10.25 IN Country of Origin: Mexico
