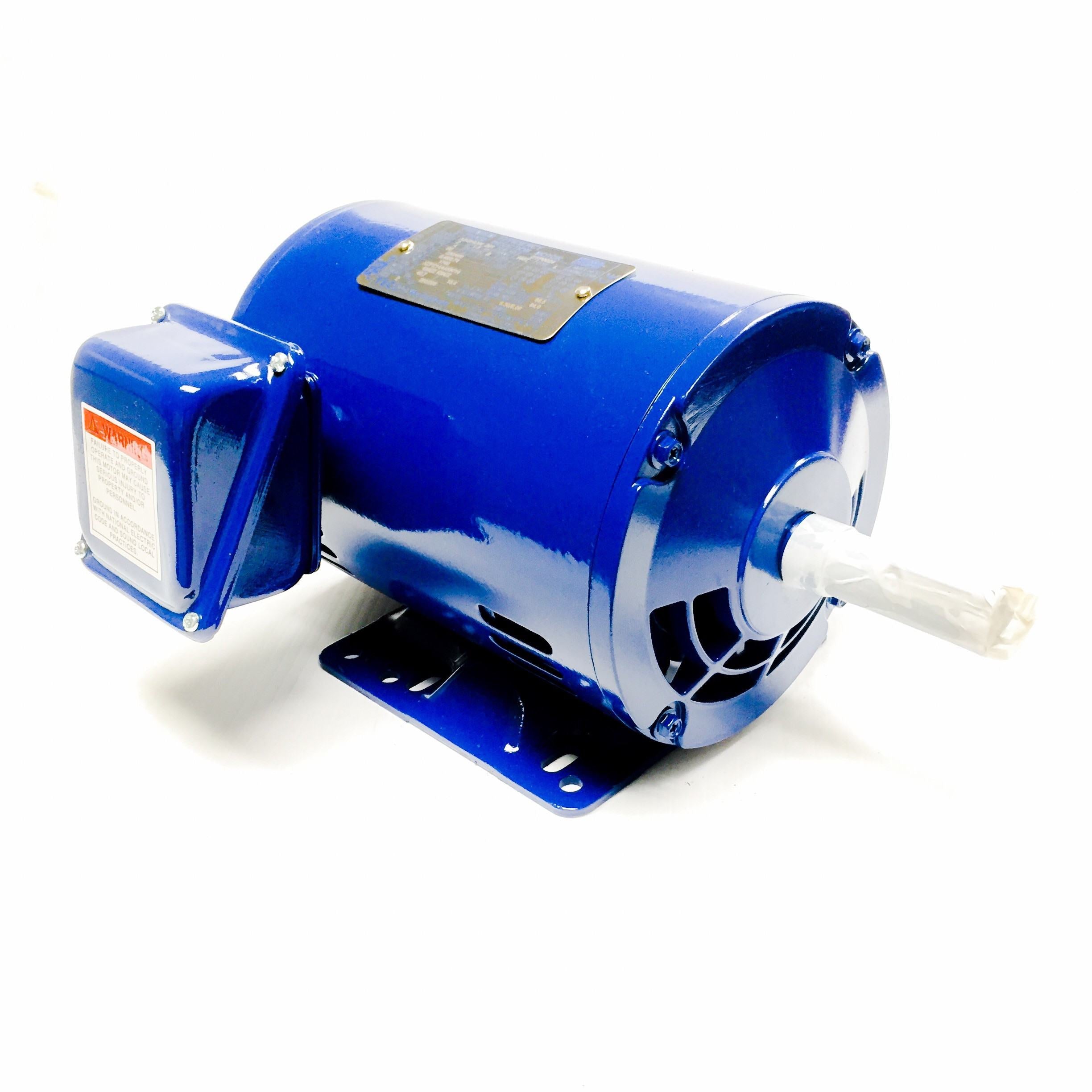

DTP7/54G Teco Westinghouse Motor 7.5HP 1800RPM 213T ODP 208-230/460V 3 Phase Aegis

Each motor ships brand new with a manufacturer's warranty.

The AEGIS® SGR Bearing Protection Ring aids in preventing electrical bearing "fluting"damage by safely diverting harmful shaft voltages and bearing currents to ground. Using proprietary Electron Transport Technology™, the conductive microfibers inside the AEGIS® SGR provide reliable current diversion technology for shaft grounding with a "path of least resistance" to dramatically extend motor life. AEGIS® Shaft Grounding Rings have a warranty of 1 year.

Applications:

• Fans & Blowers
• Pumps
• Compressors
• HVAC Equipment

• Open Drip Proof (IP22)
• Available in Horizontal Foot Mounted or JM/JP Frame Configurations
• Meets or Exceeds EISA Requirements
• Department of Energy Efficiency Certificate # CC002A
• 36 Month Warranty from Date of Manufacture
• 60 Hz - 230/460V (Usable on 200 & 208V)
• 1.15 Service Factor - Continuous
• Class F Insulation with Phenolic Alkyd Resin Varnish
• Class B Temperature Rise
• NEMA Design B Torques
• Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted. F2 Available for Frames 180T - 280T (Epact Only), NEMA P Frame not centered. See "EXTRA/OPTIONS" Below
• Designed for 40oC Ambient Temperature - Note (1)
• Designed for 3300 ft. Elevation - Note (2)
• Bi-Directional Rotation
• Rolled Steel Frame and Conduit Box
• 1045 Carbon Steel Shaft
• Aluminum Die Cast Squirrel Cage Rotor Construction
• Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
• Paint Color: ASGA Light Gray - Munsell N5.0, ASGH Blue - Munsell 5PB 3/8
• Double Shielded Bearings Pre-Packed with MULTEMP SRL Grease
• Grounding Terminal Inside Main Box
• Stainless Steel Nameplate
• VFD Rated per NEMA MG1 Part 31.4.4.2 - Note (3) (4)
• Speed Ranges: 20:1 VT, 10:1 CT
• 12 Leads - 7.5 HP and larger, 9 Leads for all other motors
• Motors are U.L. Recognized,CSA Approved and CE Marked
• Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG1 Part 31.4.4.3. (Part 30 for ASGA and ASGA JP/JM)
