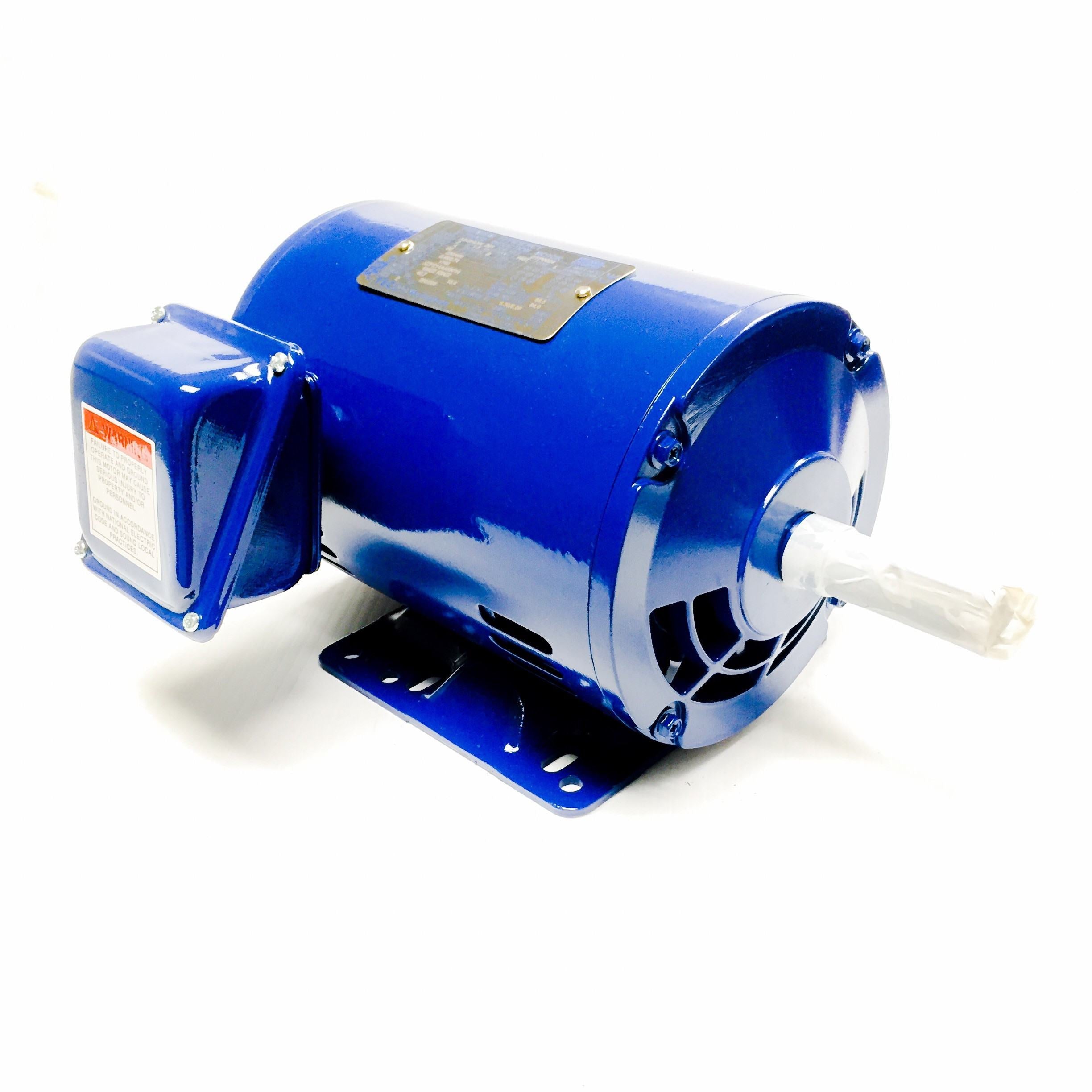

DSP1/52 Teco Westinghouse Motor 1.5HP 3600RPM 56 ODP 208-230/460V 3 Phase

Replaces Teco catalog # DS1/52.

Buy Teco-Westinghouse motor DSP1/52 for a premium AC electric motor that can be used for commercial and industrial jobs, such as fans, pumps, and machinery. The slotted stator allows airflow for cooling but means that this machine cannot be subjected to excessive moisture or dirt in order to avoid premature failure.

Electric motor features include:

• Rolled Steel Construction / Steel Shaft
• Grounding Terminal Inside Main Junction Box
• Oversized Conduit Box is Rotatable in 90 Degree Turns
• F1 Mount
• 40˚C Ambient Temperature
• Reversible Rotation
• Double Shielded Ball Bearings (Non-regreasable)
• Stainless Steel Nameplate
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• 9 Leads
• Class F Insulation
