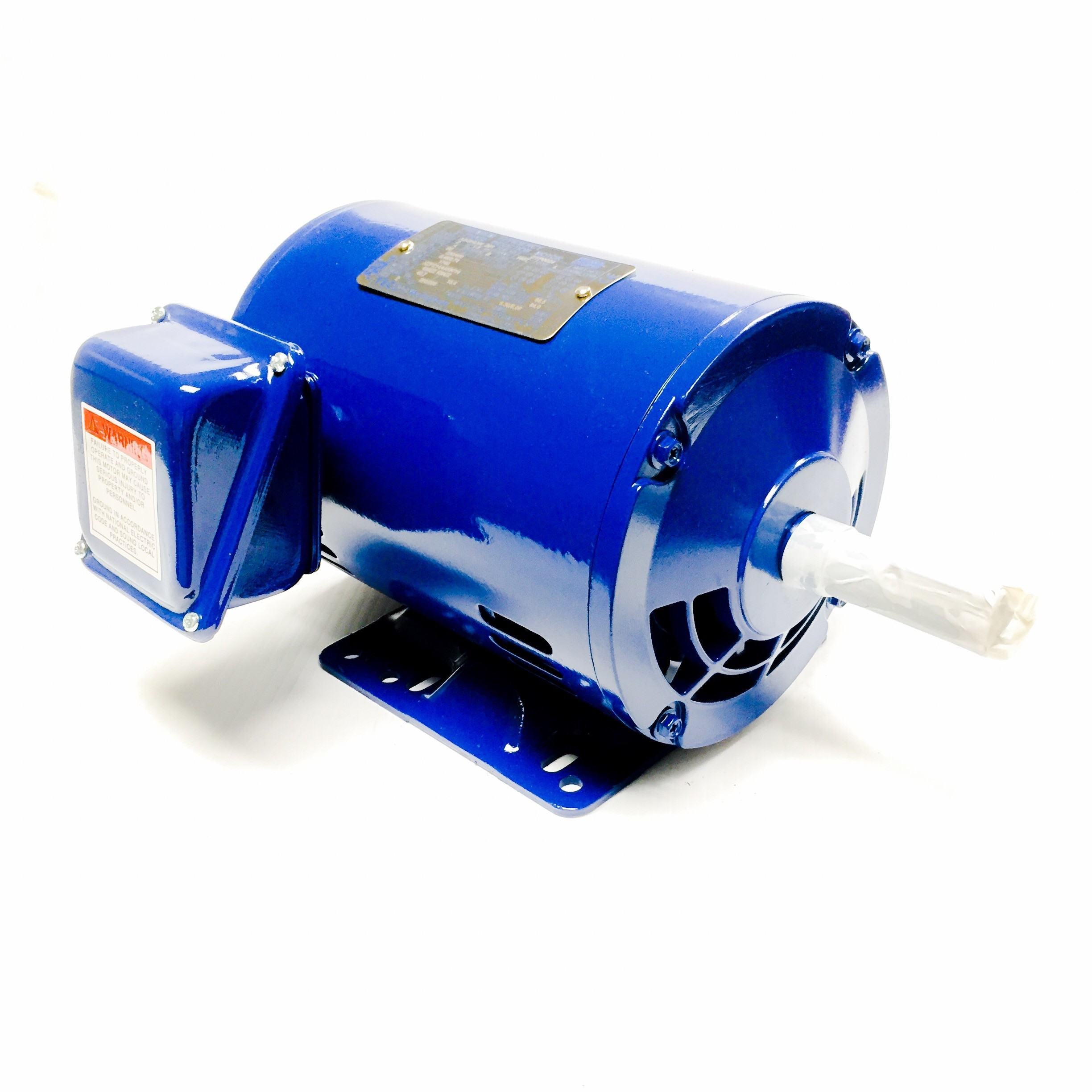

DSP0024 Teco Westinghouse Motor 2HP 1800RPM 56 ODP 208-230/460V 3 Phase

Replaces Teco catalog # DS0024.

DSP0024 Teco-Westinghouse AC motor features a rolled steel body, steel shaft, and oversized connection box with 9 leads. The junction box can rotate in 90 degree increments for connection options. This 2hp Teco motor is inverter duty and can be used with an adjustable speed drive (VFD): speed range is 20:1 variable torque and 10:1 constant torque.

The open dripproof frame (ODP) means that the motor is ideal for environments with minimal moisture, dirt, and dust. Not ideal for outside use unless the area is protected.

Use Teco DSP0024 for a wide range of applications including:

• Pumps
• Fans
• Blowers
• Compressors
