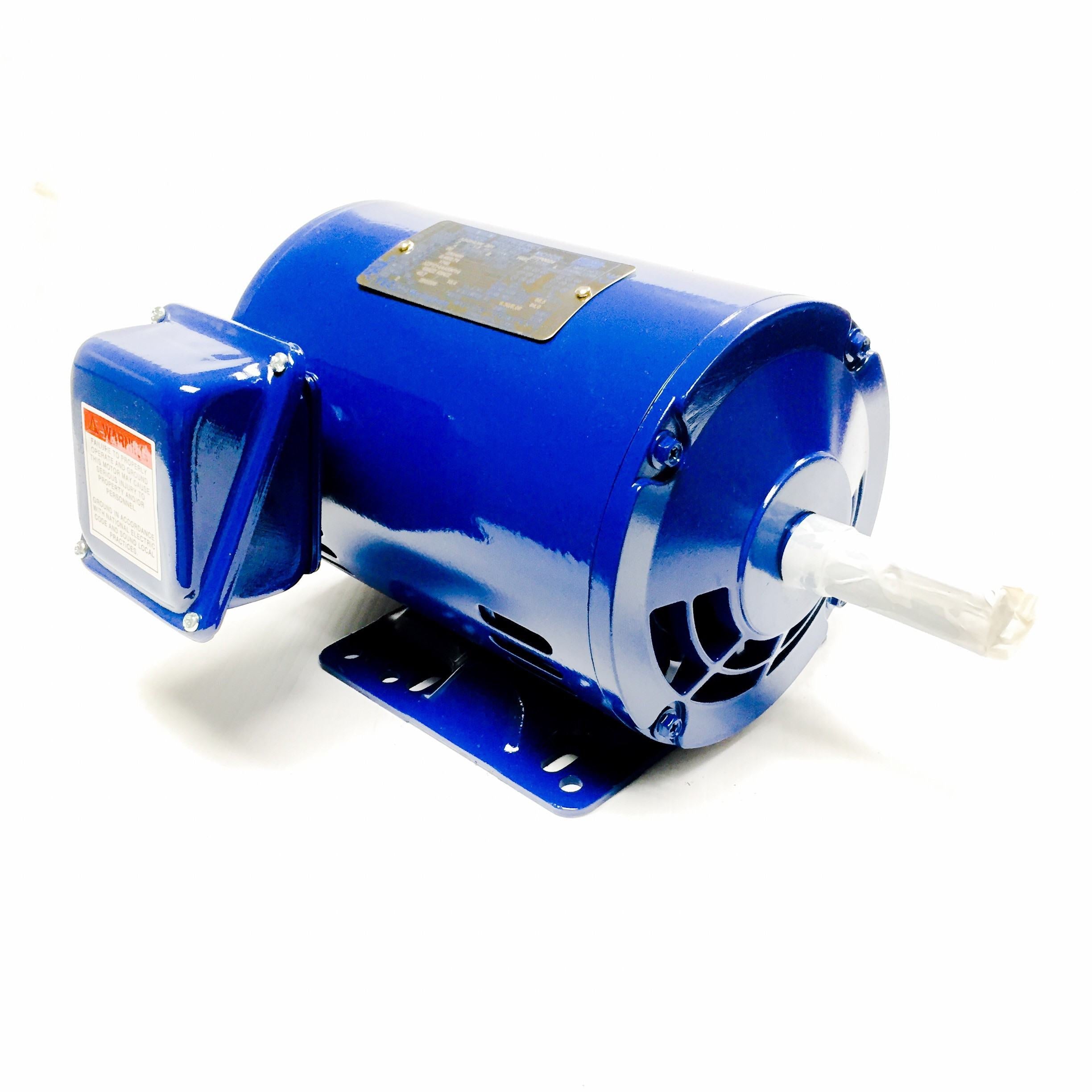

DSP0014 Teco Westinghouse Motor 1HP 1800RPM 56 ODP 208-230/460 Volt 3 Phase

SKU: DSP0014
Regular price $201.44
Regular price $322.30 Sale Sale price $201.44

Product details

  • SKU DSP0014
  • Brand Teco-Westinghouse
  • Phase 3
  • RPM 1201-1800
  • HP / KW 1
  • Application General Purpose
  • Frame 56
  • Enclosure OPEN

Replaces Teco catalog # DS0014.

DSP0014 Teco-Westinghouse AC motor features a rolled steel body, steel shaft, and oversized connection box with 9 leads. The junction box can rotate in 90 degree increments for connection options. This 1hp Teco motor is inverter duty and can be used with an adjustable speed drive (VFD): speed range is 20:1 variable torque and 10:1 constant torque.



The open dripproof frame (ODP) means that the motor is ideal for environments with minimal moisture, dirt, and dust. Not ideal for outside use unless the area is protected.



Use Teco DSP0014 for a wide range of applications including:

    • Pumps
    • Fans
    • Blowers
    • Compressors
