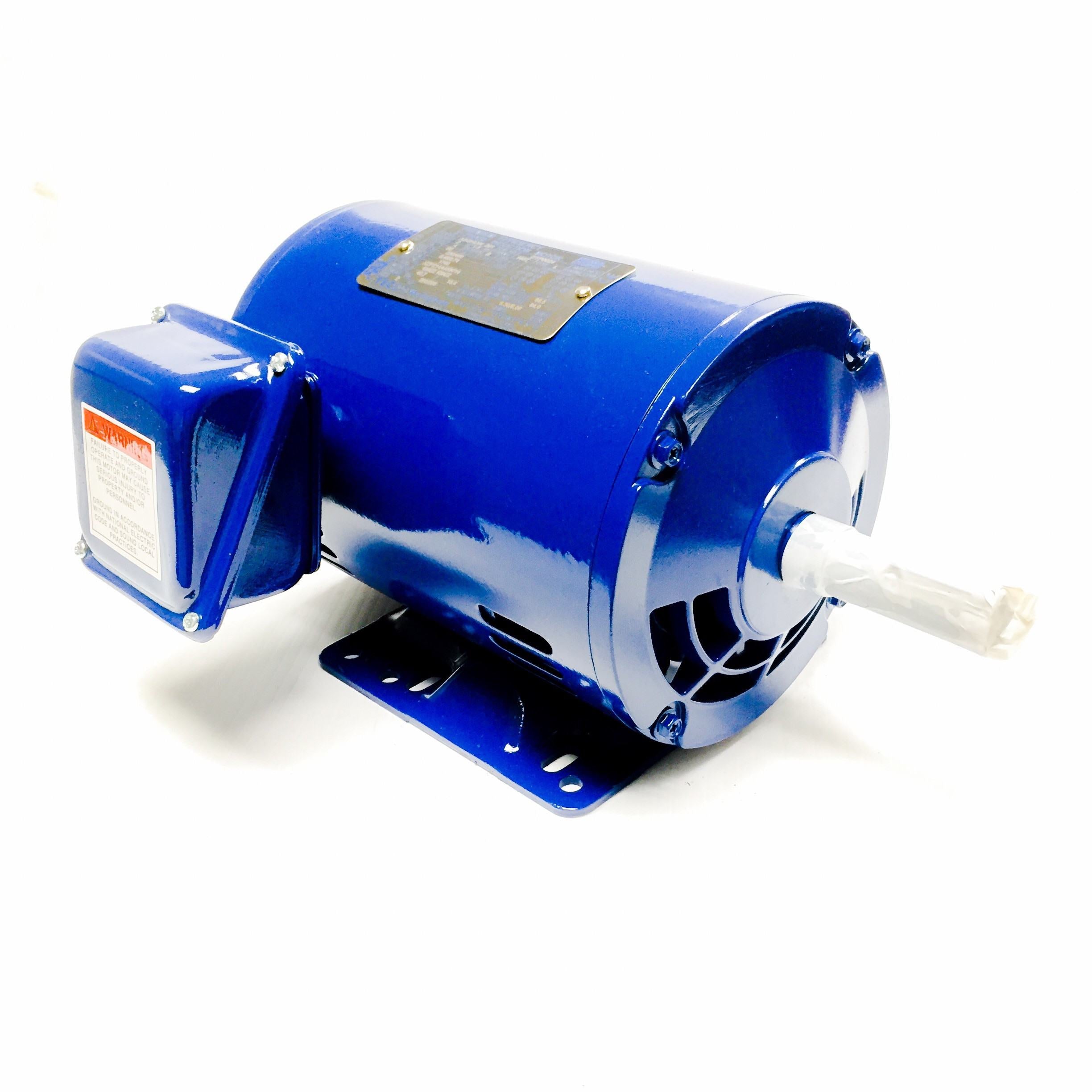

DSP0/36 Teco Westinghouse Motor 1/3HP 1200RPM 56 ODP 208-230/460V 3 Phase

Replaces Teco catalog # DS0/36.

Teco-Westinghouse motor DSP0/36 is a premium efficient, low speed AC motor that can be used for multiple applications, from pumps to fans to machinery. This 1/3hp motor is open drip-proof, so it is intended for environments with relatively low moisture and dirt / dust.

Electric motor features include:

• Rolled Steel Frame and Main Conduit Box
• Grounding Terminal Inside Main Conduit Box
• 9 Connection Leads
• Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mount
• Reversible rotation
• Carbon Steel Shaft
• Durable Double Shielded Ball Bearings
• Stainless Steel Nameplate
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Class F Insulation / Class B Temperature Rise
