Home » DSP0/32 Teco Westinghouse Motor 1/3HP 3600RPM 56 ODP 208-230/460V 3 Phase
DSP0/32 Teco Westinghouse

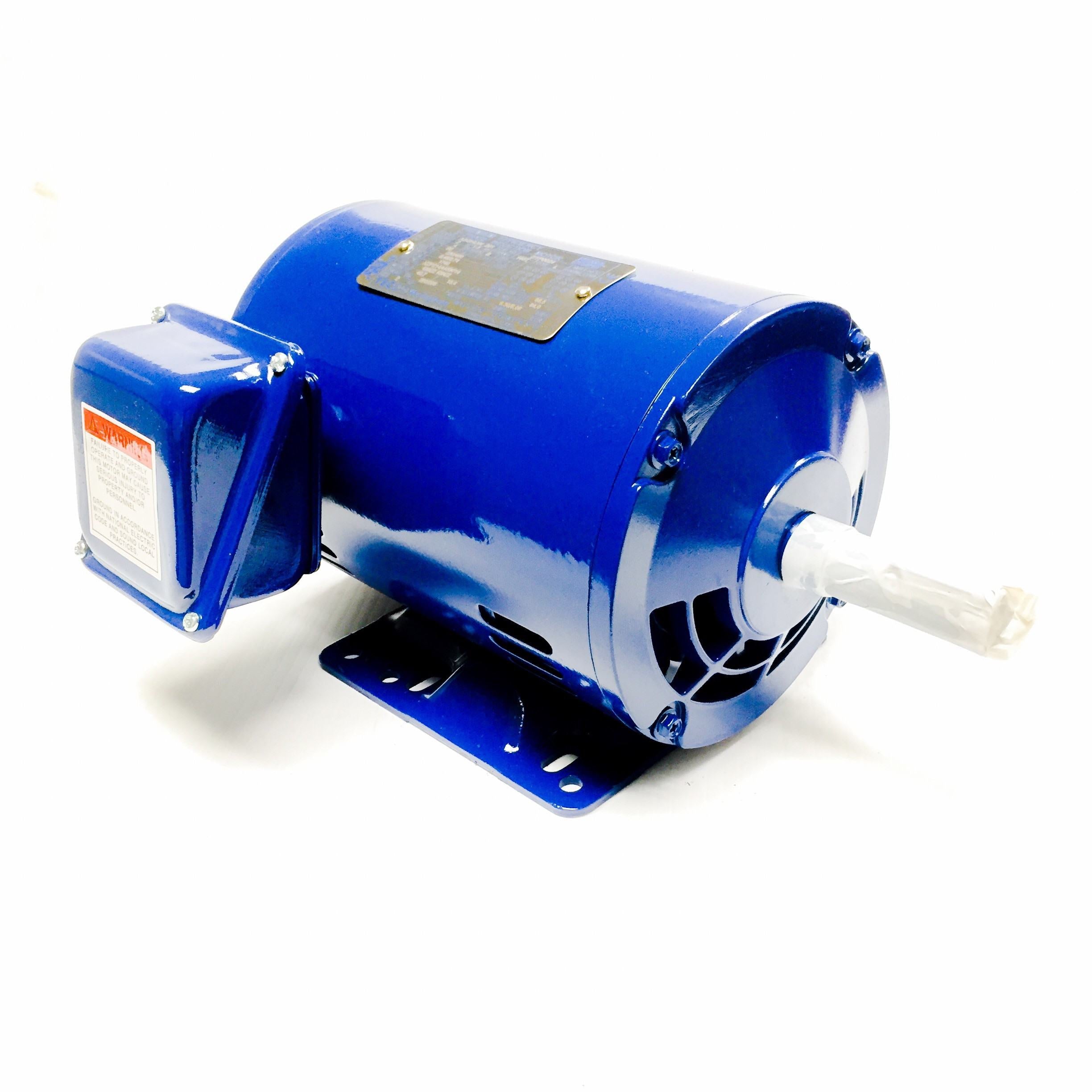

DSP0/32 Teco Westinghouse Motor 1/3HP 3600RPM 56 ODP 208-230/460V 3 Phase

SKU: DSP0/32
$144.41
$231.06 Sale $144.41

Product details

  • SKU DSP0/32
  • Brand Teco-Westinghouse
  • Phase 3
  • RPM 1801-3600
  • HP / KW 1/3 (.33)
  • Application General Purpose
  • Frame 56
  • Enclosure OPEN
  • Voltage 208-230/460V

Share

Description Reviews

Replaces Teco catalog # DS0/32.

Teco-Westinghouse motor DSP0/32 is a premium efficient ODP motor that can be used for a wide range of jobs, including pumps, fans, blowers, compressors, and other industrial and commercial applications.

Electric motor features include:

  • Class F Insulation
  • Class B Temperature Rise
  • NEMA Design B Torques
  • Rolled Steel Frame and Main Conduit Box
  • Grounding Terminal Inside Main Conduit Box
  • Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
  • Designed for 40˚C Ambient Temperature(1)
  • Designed for 3300 ft. Elevation(2)
  • Bi-Directional Rotation
  • 1045 Carbon Steel Shaft
  • Double Shielded Bearings Pre-Packed with MULTEMP SRL (Non-regreasable)
  • Stainless Steel Nameplatez Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2(3,4)
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • 9 Leads
  • U.L. Recognized for United States and Canada, CSA Approved and CE Marked
