DSP0/24 Teco Westinghouse Motor 1/4HP 1800RPM 56 ODP 208-230/460V 3 Phase

Name: DSP0/24 Teco Westinghouse Motor 1/4HP 1800RPM 56 ODP 208-230/460V 3 Phase
Availability: InStock

SKU: DSP0/24

$154.40

~~$247.04~~ Sale $154.40

Product variants

Product details

SKU DSP0/24
Brand Teco-Westinghouse
Phase 3
RPM 1201-1800
HP / KW 1/4 (.25)
Application General Purpose
Frame 56
Enclosure OPEN
Voltage 208-230/460V

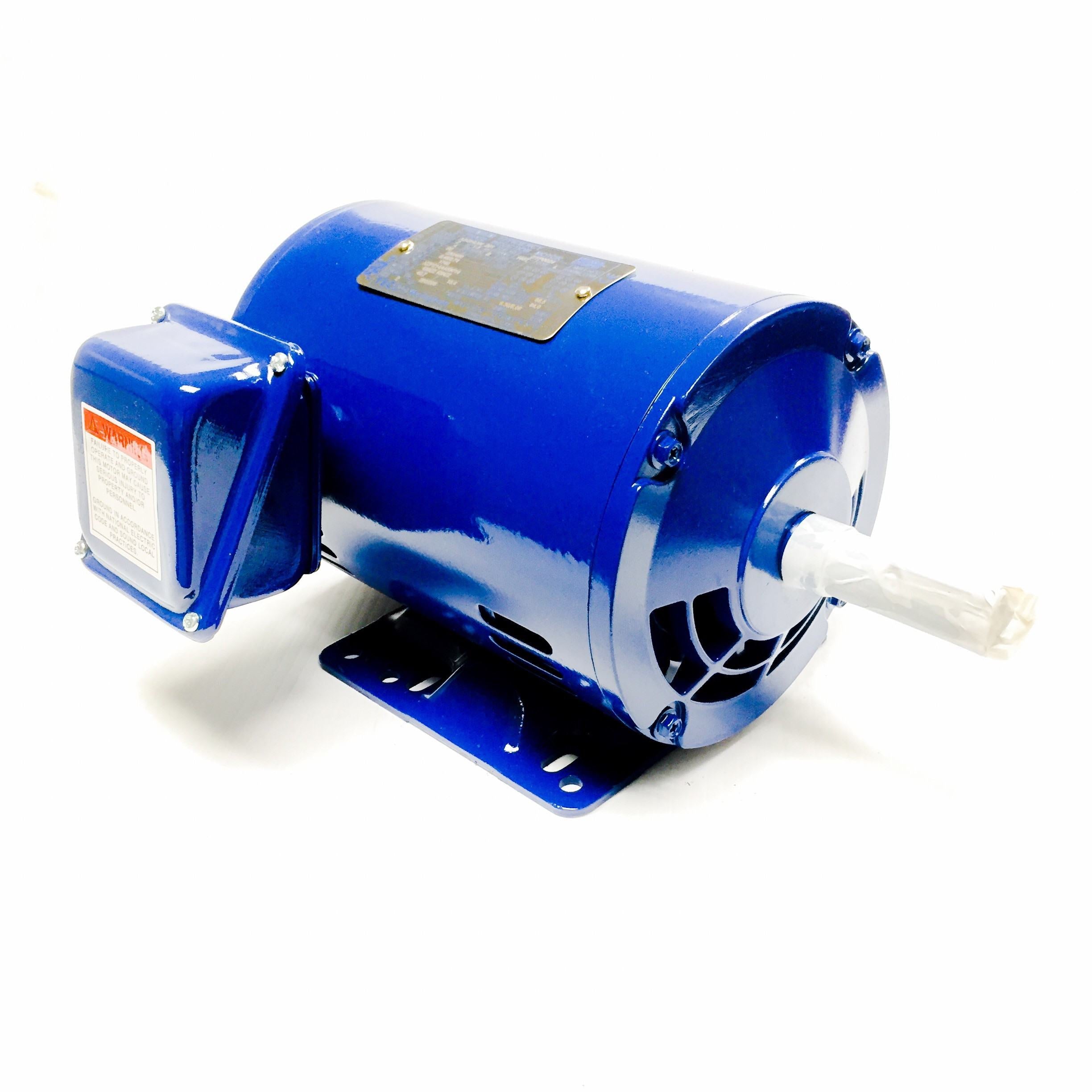

DSP0/24 Teco-Westinghouse motor features a rolled steel frame, carbon steel shaft, and oversized junction box with 9 connection leads. The conduit box is rotatable in 90 degree increments for mounting convenience.

This Teco motor can be used with a variable speed drive; inverter duty speed range is 20:1 variable torque and 10:1 constant torque.

An open drip-proof enclosure (ODP) means that the motor should be limited to moisture and dirt exposure. Commercial and industrial application for this electrical machine incoide:

Pumps
Fans
Blowers
Compressors
