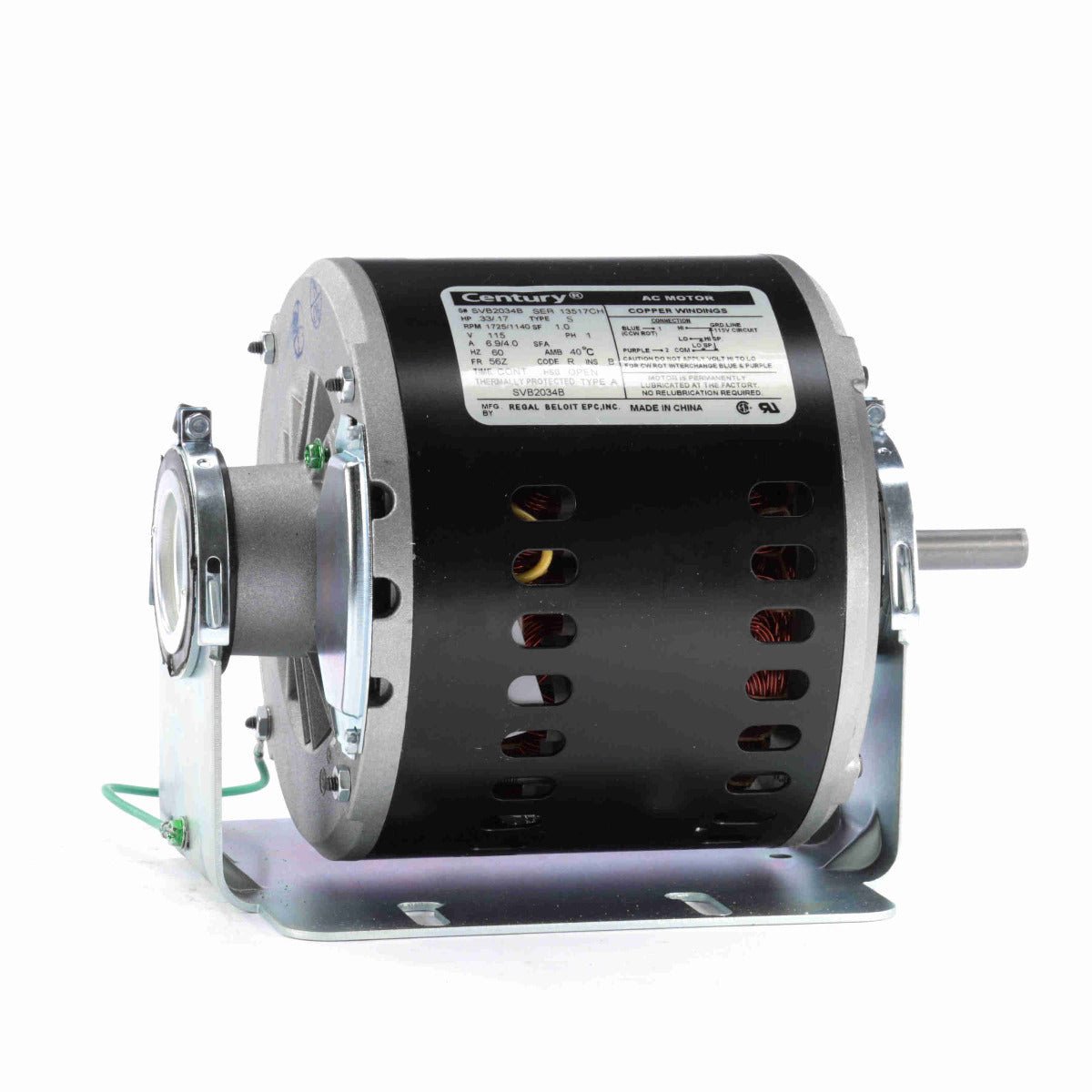

* Image is for reference only

SVB2034BV1 Century Motor 1/3-7/100HP 1725/1140RPM 56Z ODP 115 Volt 1 Phase

SKU: SVB2034BV1
$255.05
Sale $255.05
Description
  • Brass current carrying
  • Single and two speed
  • Continuous filtration of oil
  • Electro-zin encapsulating varnish
  • Heavy magnet wire insulation
  • Moisture resistant terminal board
  • Electro zinc plated governor parts, dust caps and terminal board cover
  • Auto protector
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/3-1/6 Hp
Output KW: 0.25 kW Voltage: 115 V
Speed: 1725/1140 rpm Service Factor: 1
Frame: 56Z Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 6.9/4.0 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 2

Technical Specifications

Poles: 4/6 Rotation: Reversible
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Frame Length: 4.69 in
Shaft Diameter: 0.500 in Shaft Extension: 1.6 in

General Specifications

UPC: 786674076328 Weight: 19.88 LB
Packaged Length: 10.81 IN Packaged Width: 7.81 IN
Packaged Height: 8.81 IN HTC: 8501.40.4040
Country of Origin: China
