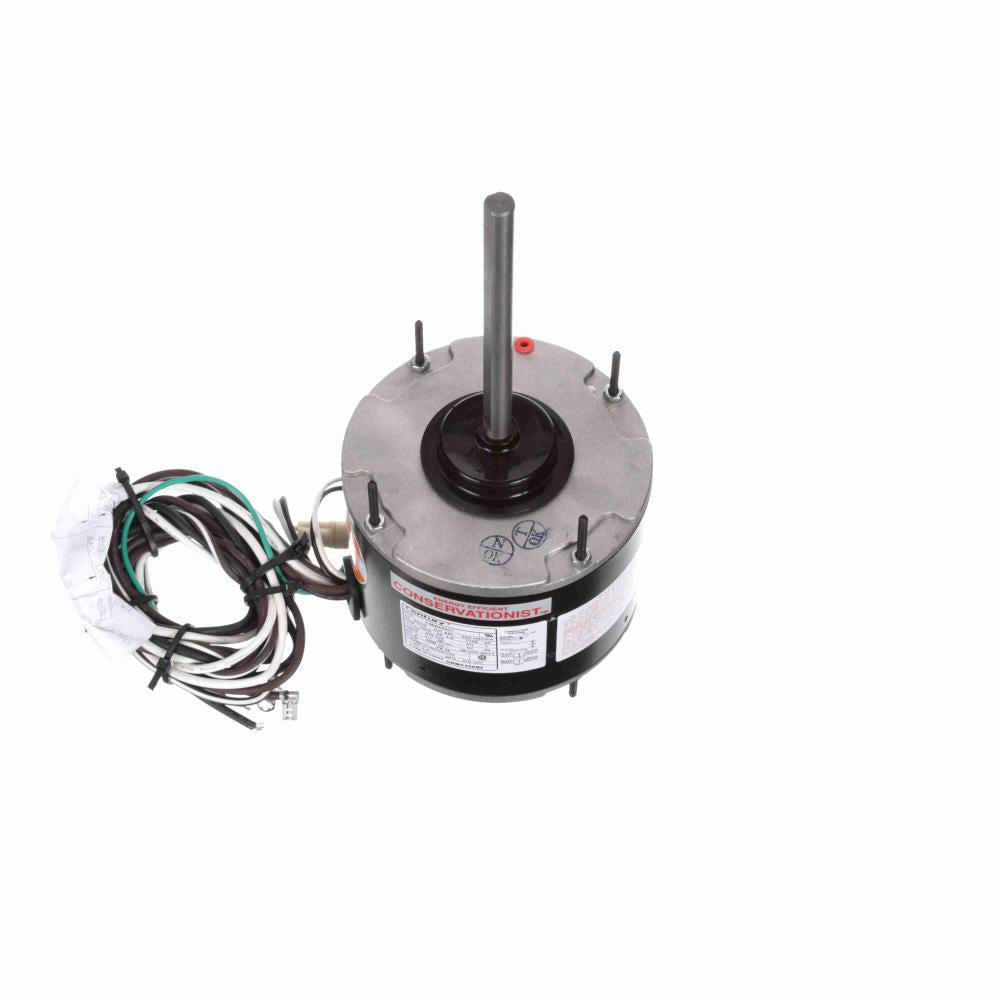

Century Motors ORM5458F Features:
- 4-in-1 HeatMaster - Condenser Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class F Insulation, 70°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Double Flat
- 48" Leads
- Extended Studs Shaft End and Lead End, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)
PRODUCT SPECIFICATIONS
General Specifications
| UPC: |
786674028297 |
Weight: |
12.00 LB |
| Packaged Length: |
13.78 IN |
Packaged Width: |
6.42 IN |
| Packaged Height: |
6.81 IN |
HTC: |
8501.40.4040 |
|
Nameplate Specifications
| Phase: |
1 |
Output HP: |
1/3-1/6 Hp |
| Output KW: |
0.25 kW |
Voltage: |
208-230 V |
| Speed: |
1075 rpm |
Service Factor: |
1 |
| Frame: |
48 |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
70 °C |
| Frequency: |
60 Hz |
Current: |
2.1 A |
| Duty: |
Air Over |
Insulation Class: |
F |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
A2L Status: |
A2L Certified |
| Number of Speeds: |
1 |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Reversible |
| Mounting: |
Extended Studs |
Motor Orientation: |
Any |
| Drive End Bearing: |
Ball |
Opp Drive End Bearing: |
Ball |
| Frame Material: |
Rolled Steel |
Shaft Type: |
Double Flat |
| Overall Length: |
11.49 in |
Frame Length: |
3.50 in |
| Shaft Diameter: |
0.500 in |
Shaft Extension: |
6.5 in |
