OAN010 Century Motor

* Image is for reference only

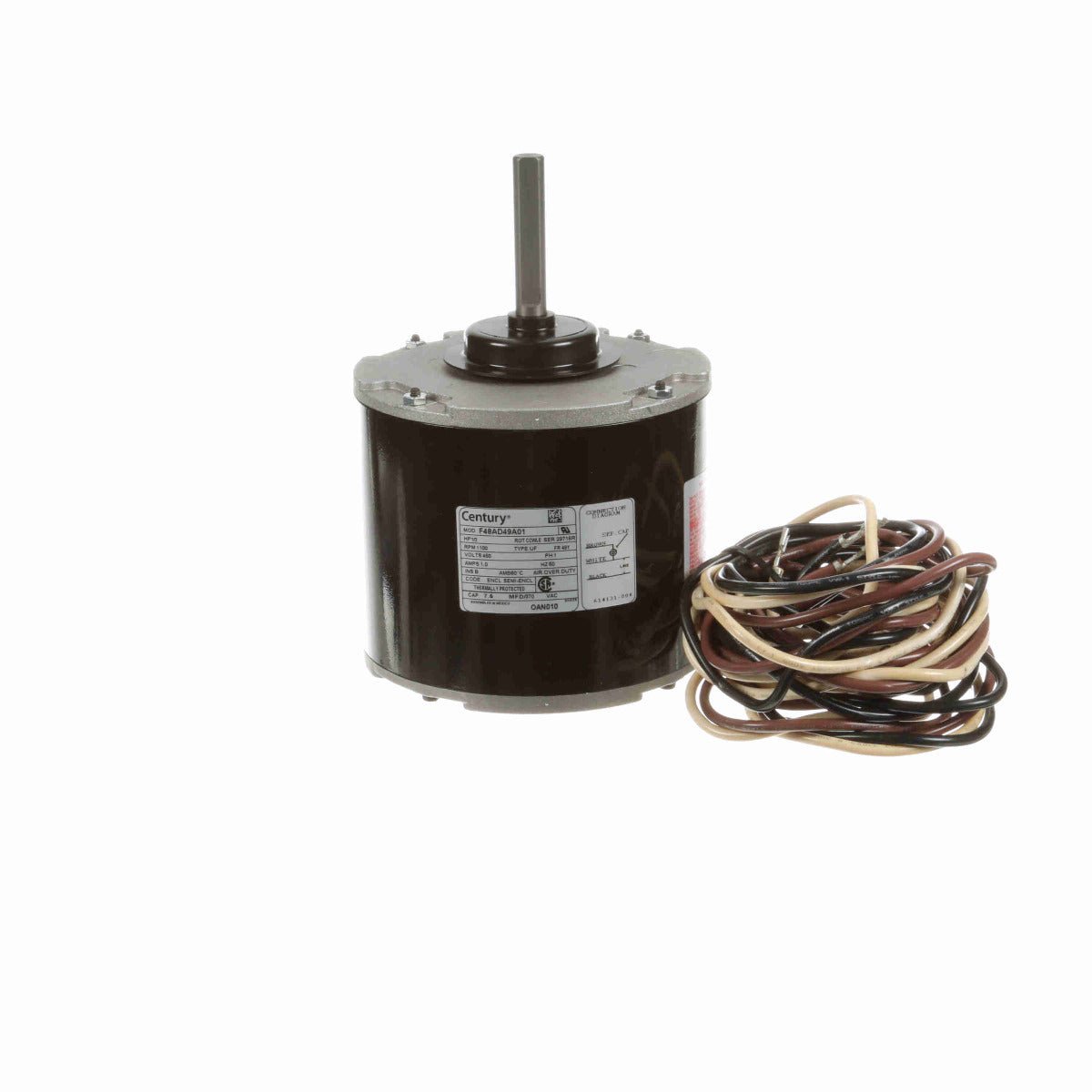

OAN010 Century Motor 1/3HP 1100RPM 48Y SEMI ENCL 460 Volt 1 Phase

SKU: OAN010

$322.56

~~$512.00~~ Sale $322.56

Description

Description

OEM Direct Replacement Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Opposite Shaft End End-Frame, Enclosed Shaft End End-Frame and Shell, Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
108" Leads with Quick Connect Terminals
Belly Band Mount Vertical Shaft Up
