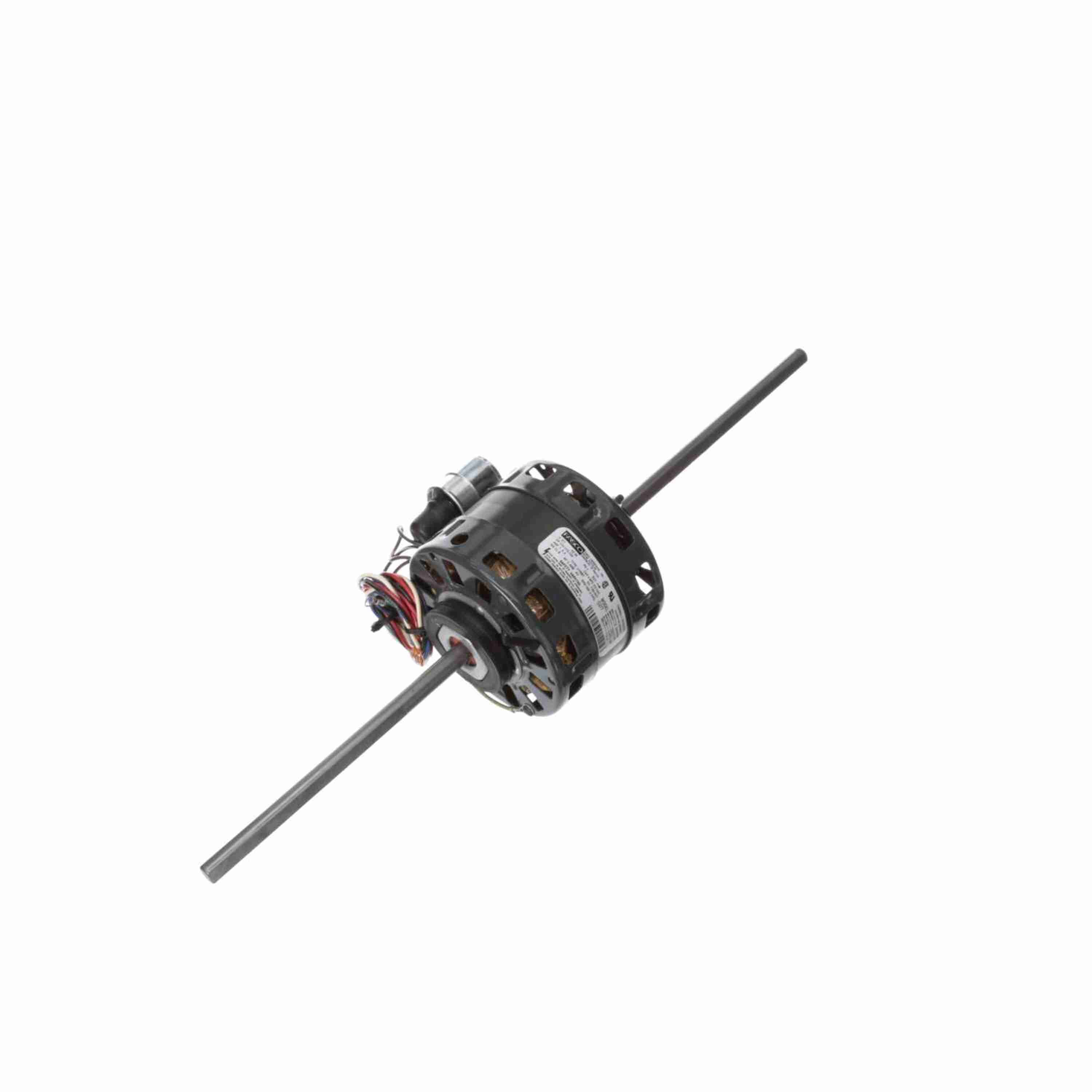

* Image is for reference only

DC4522A Century Motor 1/5HP 1550RPM 42Y OPEN 208-230 Volt 1 Phase

SKU: DC4522A
$0.00
Sale $0.00
Description
  • This item replaces Century DC4522
  • Fan Coil - Dual Wheel Blower Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Double Shaft with Double Flats
  • 30" Leads
  • Resilient Ring Mounting
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/5,1/10 Hp
Voltage: 208-230 V Speed: 1550 rpm
Service Factor: 1.0 Frame: 42
Enclosure: Open Enclosed Thermal Protection: Automatic
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 2.6,1.2 A Duty: Air Over
Insulation Class: B UL: Recognized
CSA: Y CE: N
Number of Speeds: 2

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Lead End
Mounting: Resilient Rings Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Frame Length: 3.83 in
Shaft Diameter: 0.500 in Shaft Extension: 10.2X.5X10.2 in

General Specifications

UPC: 786674077691 Weight: 11.13 LB
Packaged Length: 25.88 IN Packaged Width: 6.88 IN
Packaged Height: 7.13 IN Country of Origin: Mexico
