Home » DBL6501A Century Motor 1/10-1/12-1/15-1/20HP 1075RPM 42Y OPEN 115V 1 Phase
DBL6501A Century Motor 1/10 - 1/12 - 1/15 - 1/20HP 1075RPM 42Y OPEN 115V 1 Phase - Square One Electric Motors & Pumps

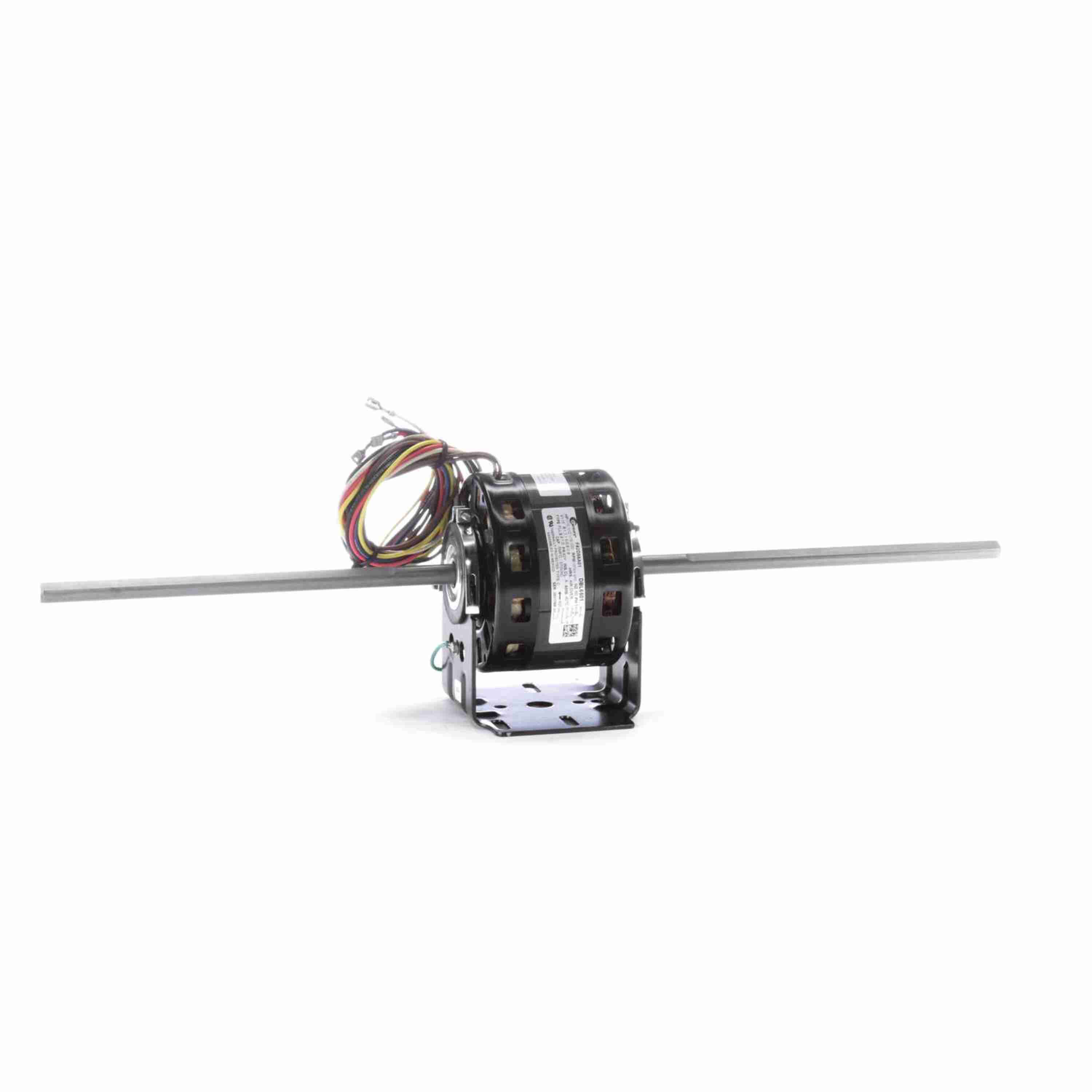

* Image is for reference only

DBL6501A Century Motor 1/10-1/12-1/15-1/20HP 1075RPM 42Y OPEN 115V 1 Phase

SKU: DBL6501A
$168.27
Sale $168.27
Description
  • This item replaces Century DBL6501 / DBL6501V1
  • Fan Coil - Dual Wheel Blower Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Double Shaft with Double Flats
  • 38.5" Leads with Quick Connect Terminals
  • Resilient Base
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/10,1/12,1/15,1/20 Hp
Voltage: 115 V Speed: 1075 rpm
Service Factor: 1.0 Frame: 42
Enclosure: Open Enclosed Thermal Protection: Automatic
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 2.1,1.54,1.25,1.05 A Duty: Air Over
Insulation Class: B UL: Recognized
CSA: Y CE: N
Number of Speeds: 4

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Counterclockwise Lead End
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Frame Length: 3.58 in
Shaft Diameter: 0.500 in Shaft Extension: 10.33x.5x10.33 in

General Specifications

UPC: 786674077677 Weight: 14.13 LB
Packaged Length: 25.88 IN Packaged Width: 6.13 IN
Packaged Height: 6.25 IN Country of Origin: Mexico
