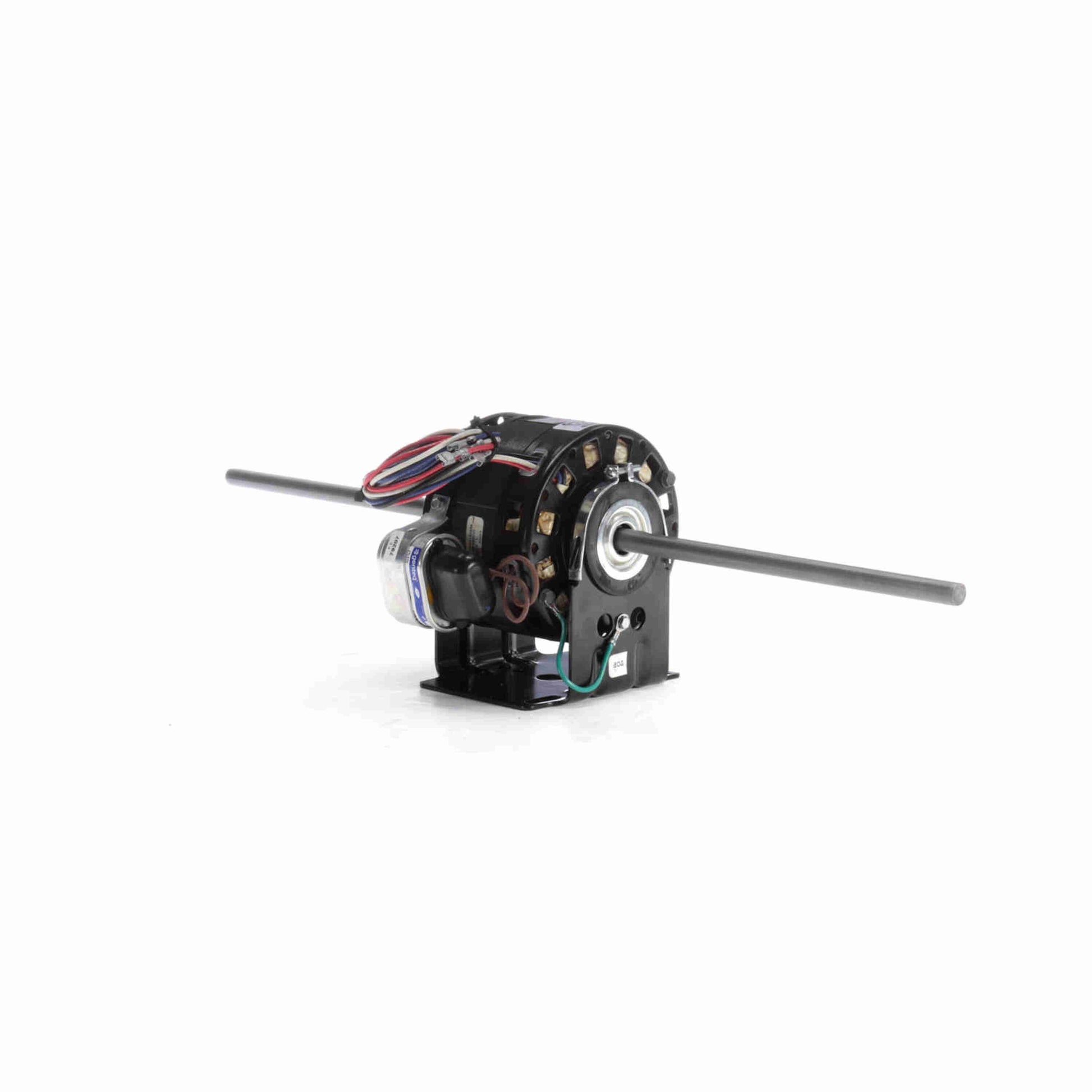

* Image is for reference only

DBL4500V1A Century Motor 1/10-1/12-1/15HP 1625RPM 42Y OPEN 115 Volt 1 Phase

SKU: DBL4500V1A
$236.21
Sale $236.21
Description
  • This item replaces Century DBL4500V1
  • Fan Coil - Dual Wheel Blower Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Double Shaft with Double Flats
  • 38.5" Leads with Quick Connect Terminals
  • Resilient Base
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/10 Hp
Voltage: 115 V Speed: 1625 rpm
Service Factor: 1.0 Frame: 42
Enclosure: Open Enclosed Thermal Protection: Automatic
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 1.4 A Duty: Air Over
Insulation Class: B UL: Recognized
CSA: Y CE: N
Number of Speeds: 3

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Lead End
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Frame Length: 3.58 in
Shaft Diameter: 0.500 in Shaft Extension: 9.33X.5X9.33 in

General Specifications

UPC: 786674077660 Weight: 15.13 LB
Packaged Length: 22.88 IN Packaged Width: 6.25 IN
Packaged Height: 6.44 IN Country of Origin: Mexico
