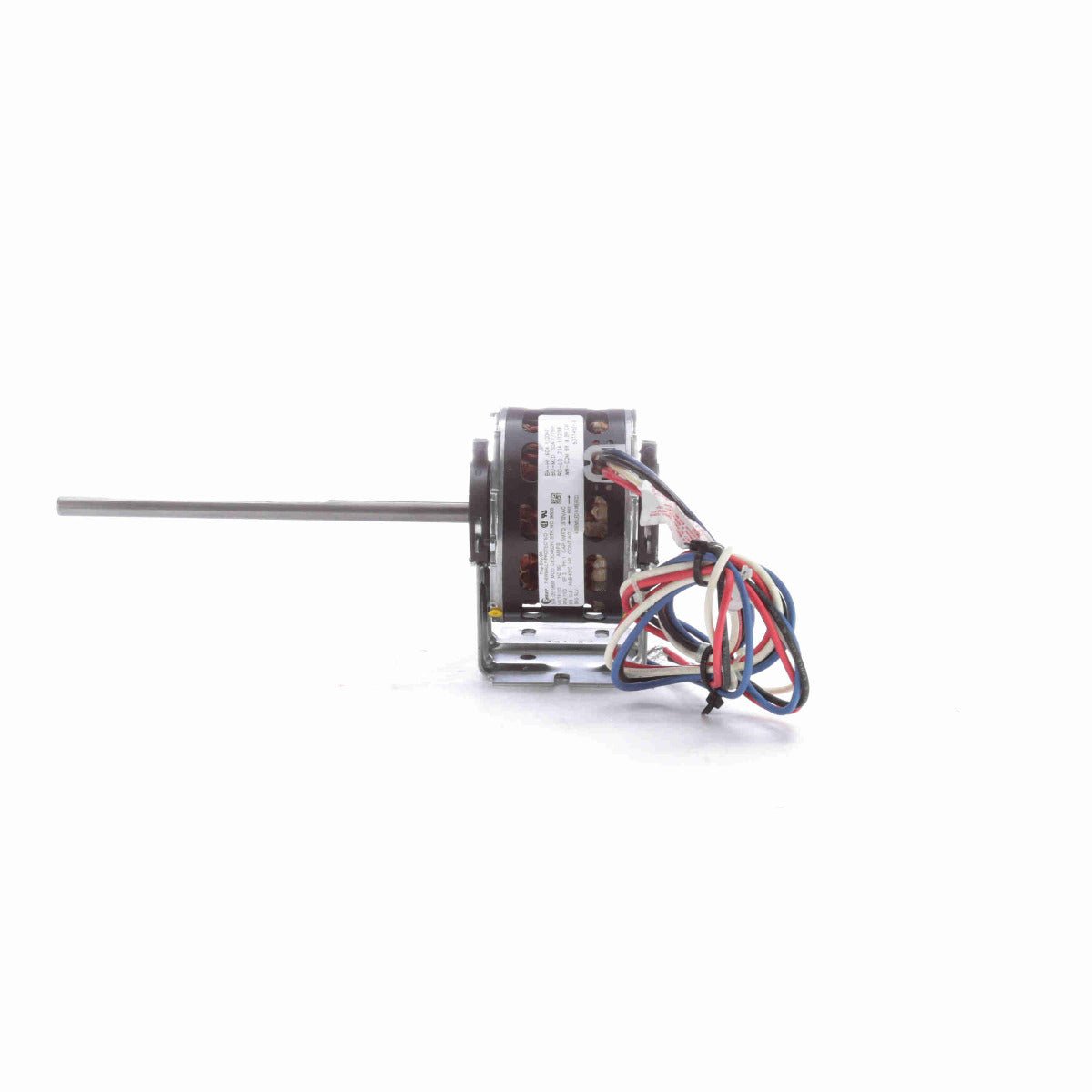

9608A Century Fan Motor 1/20-1/75-1/120HP 1100RPM 42Y OAO 115 Volt 1 Phase
Skip to product information
Open media 1 in modal
* Image is for reference only
9608A Century Fan Motor 1/20-1/75-1/120HP 1100RPM 42Y OAO 115 Volt 1 Phase
SKU:
9608A
Description
Specifications
Description
This item replaces Century 9608
Furnace Blower - Air Handler - Fan Coil - Air Conditioning Motor
5" Diameter - 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
44" Leads
Resilient Base
Specifications
Nameplate Specifications
Phase:
1
Output HP:
1/20,1/75,1/120 Hp
Voltage:
115 V
Speed:
1100 rpm
Service Factor:
1.0
Frame:
42
Enclosure:
Open Air Over
Thermal Protection:
Thermally Protected
Ambient Temperature:
40 °C
Frequency:
60 Hz
Current:
0.75,0.38,0.26 A
Duty:
Continuous Air Over
Insulation Class:
B
UL:
Recognized
CSA:
Y
CE:
N
Number of Speeds:
3
Technical Specifications
Electrical Type:
Permanent Split Capacitor
Starting Method:
Across The Line
Poles:
6
Rotation:
Reversible
Mounting:
Resilient Base
Drive End Bearing:
Ball
Opp Drive End Bearing:
Ball
Frame Material:
Rolled Steel
Shaft Type:
Flat
Frame Length:
3.33 in
Shaft Diameter:
0.500 in
Shaft Extension:
9.85 in
General Specifications
UPC:
786674077523
Weight:
8.13 LB
Packaged Length:
15.13 IN
Packaged Width:
6.88 IN
Packaged Height:
7.13 IN
Country of Origin:
Mexico
