747A Century Fan Motor 1/4-1/8HP 1625RPM 42 OAO 208-230 Volt 1 Phase
Skip to product information
Open media 1 in modal

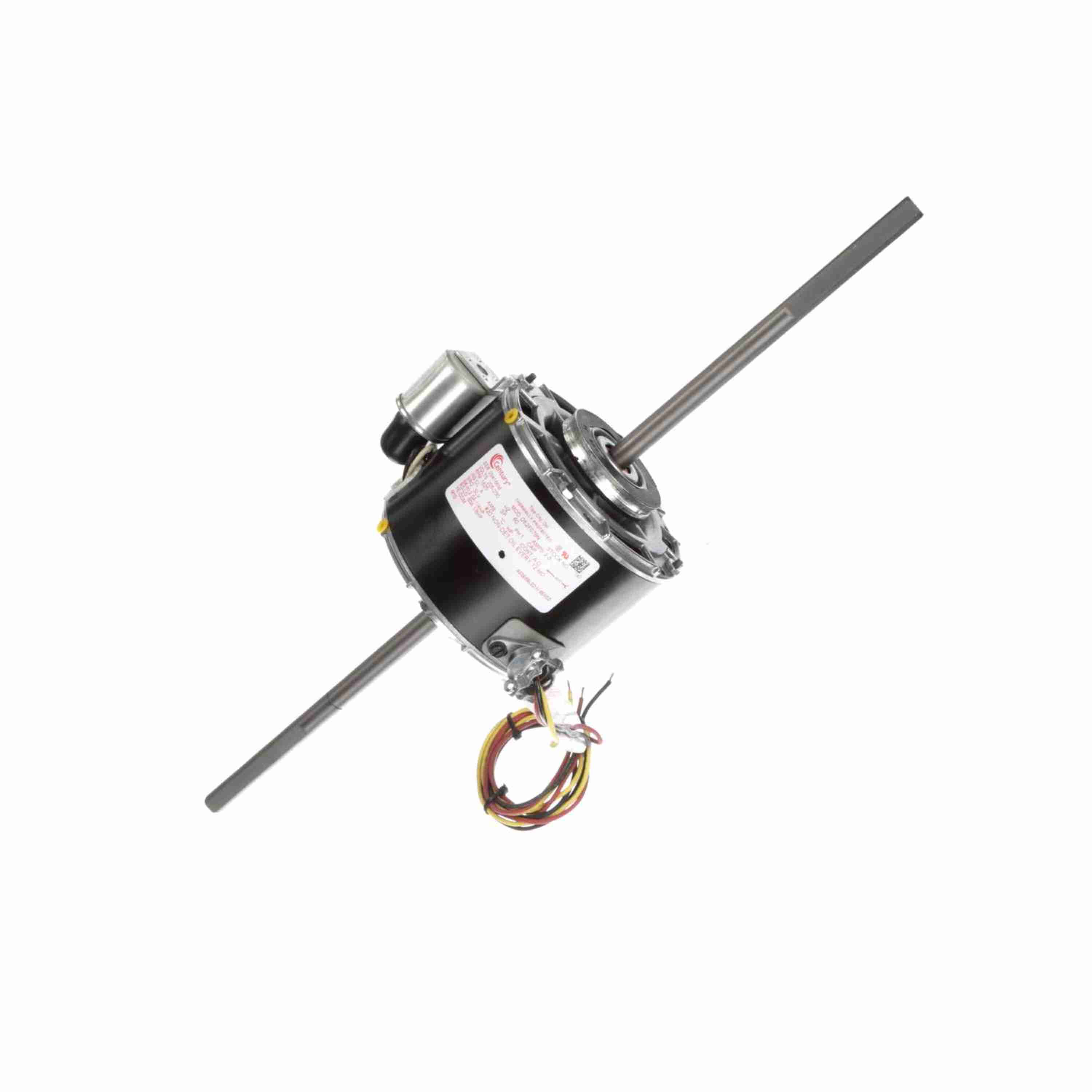

* Image is for reference only
747A Century Fan Motor 1/4-1/8HP 1625RPM 42 OAO 208-230 Volt 1 Phase
SKU:
747A
Description
Specifications
Description
This item replaces Century 747
OEM Direct Replacement Motor
5" Diameter - 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2" Diameter Double Shaft with Flat
33" Leads
Resilient Ring Mounting
Specifications
Nameplate Specifications
Phase:
1
Output HP:
1/4 Hp
Voltage:
208-230 V
Speed:
1625 rpm
Service Factor:
1.0
Frame:
42
Enclosure:
Open Air Over
Thermal Protection:
Automatic
Ambient Temperature:
40 °C
Frequency:
60 Hz
Current:
1.86 A
Duty:
Continuous Air Over
Insulation Class:
B
UL:
Recognized
CSA:
Y
CE:
N
Number of Speeds:
2
Technical Specifications
Electrical Type:
Permanent Split Capacitor
Starting Method:
Across The Line
Poles:
4
Rotation:
Counterclockwise Lead End
Mounting:
Resilient Rings
Drive End Bearing:
Ball
Opp Drive End Bearing:
Ball
Frame Material:
Rolled Steel
Shaft Type:
Flat
Frame Length:
3.83 in
Shaft Diameter:
0.500 in
Shaft Extension:
7.9X.5X8 in
General Specifications
UPC:
786674077424
Weight:
10.13 LB
Packaged Length:
25.88 IN
Packaged Width:
7.50 IN
Packaged Height:
6.25 IN
Country of Origin:
Mexico
