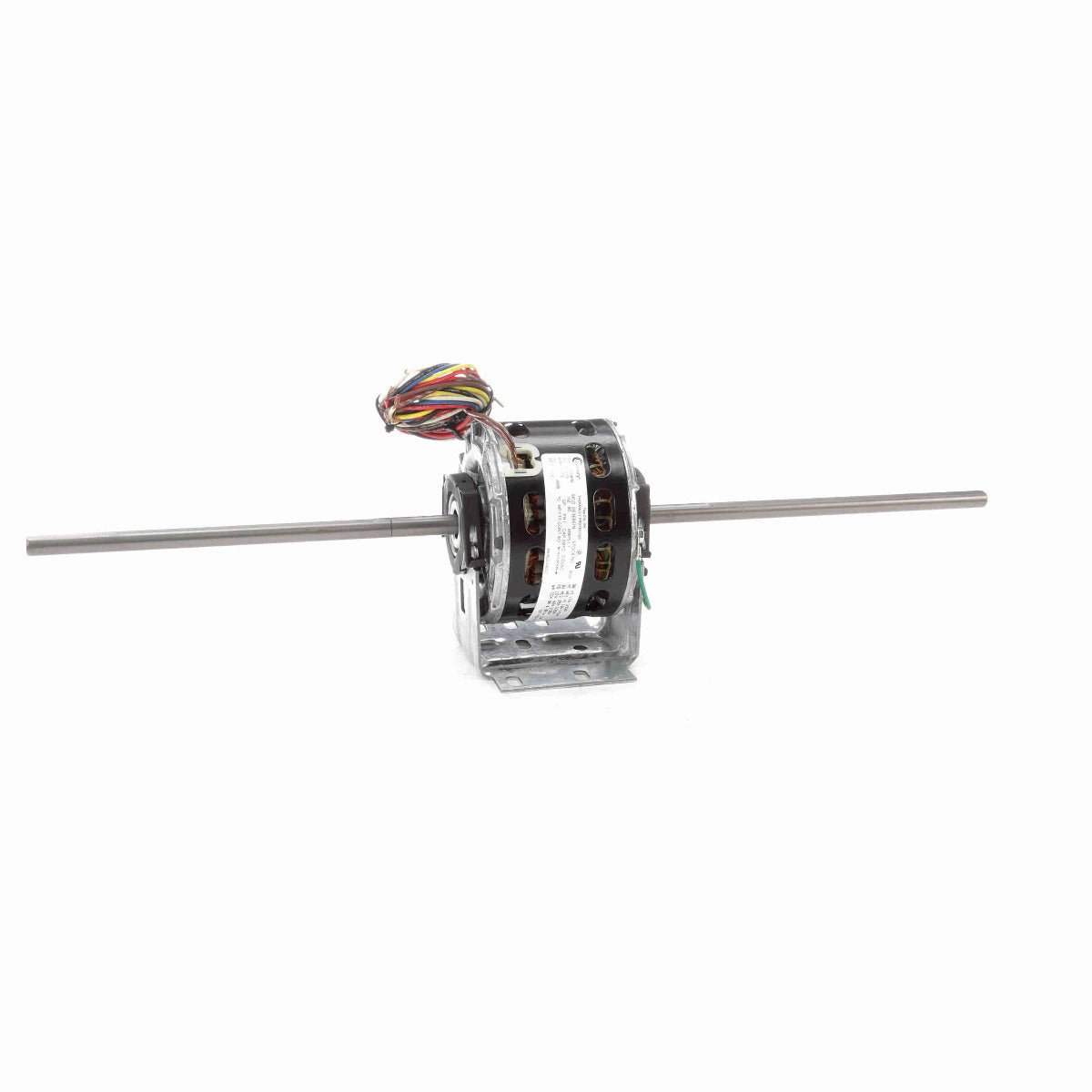

362B Century Fan Motor 1/10-1/15-1/25-1/35HP 1075RPM 42Y OAO 115V 1Ph
Skip to product information
Open media 1 in modal
* Image is for reference only
362B Century Fan Motor 1/10-1/15-1/25-1/35HP 1075RPM 42Y OAO 115V 1Ph
SKU:
362B
Description
Specifications
Description
This item replaces Century 362A
Fan Coil - Dual Wheel Blower Motor
5" Diameter - 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2" Diameter Double Shaft with Flat
48" Leads
Resilient Base
Specifications
Nameplate Specifications
Phase:
1
Output HP:
1/10,1/15,1/25,1/35 Hp
Voltage:
115 V
Speed:
1075 rpm
Service Factor:
1
Frame:
42
Enclosure:
Open Air Over
Thermal Protection:
Thermally Protected
Ambient Temperature:
40 °C
Frequency:
60 Hz
Current:
1.83 A
Duty:
Continuous
Insulation Class:
B
UL:
Recognized
CSA:
Y
CE:
N
Number of Speeds:
4
Technical Specifications
Electrical Type:
Permanent Split Capacitor
Starting Method:
Across The Line
Poles:
6
Rotation:
Clockwise Lead End
Mounting:
Resilient Base
Drive End Bearing:
Ball
Opp Drive End Bearing:
Ball
Frame Material:
Rolled Steel
Shaft Type:
Flat
Frame Length:
3.58 in
Shaft Diameter:
0.500 in
Shaft Extension:
10.6x.5x10.6 in
General Specifications
UPC:
786674077288
Weight:
2.75 LB
Packaged Length:
4.75 IN
Packaged Width:
4.50 IN
Packaged Height:
2.00 IN
Country of Origin:
Mexico
