Home » H885L Century Motor 1.5HP 1800RPM 56HZ DP 208-230/460V 3 Phase 786674056481
H885L Century Motor 1.5HP 1800RPM 56HZ DP 208 - 230/460V 3 Phase 786674056481 - Square One Electric Motors & Pumps

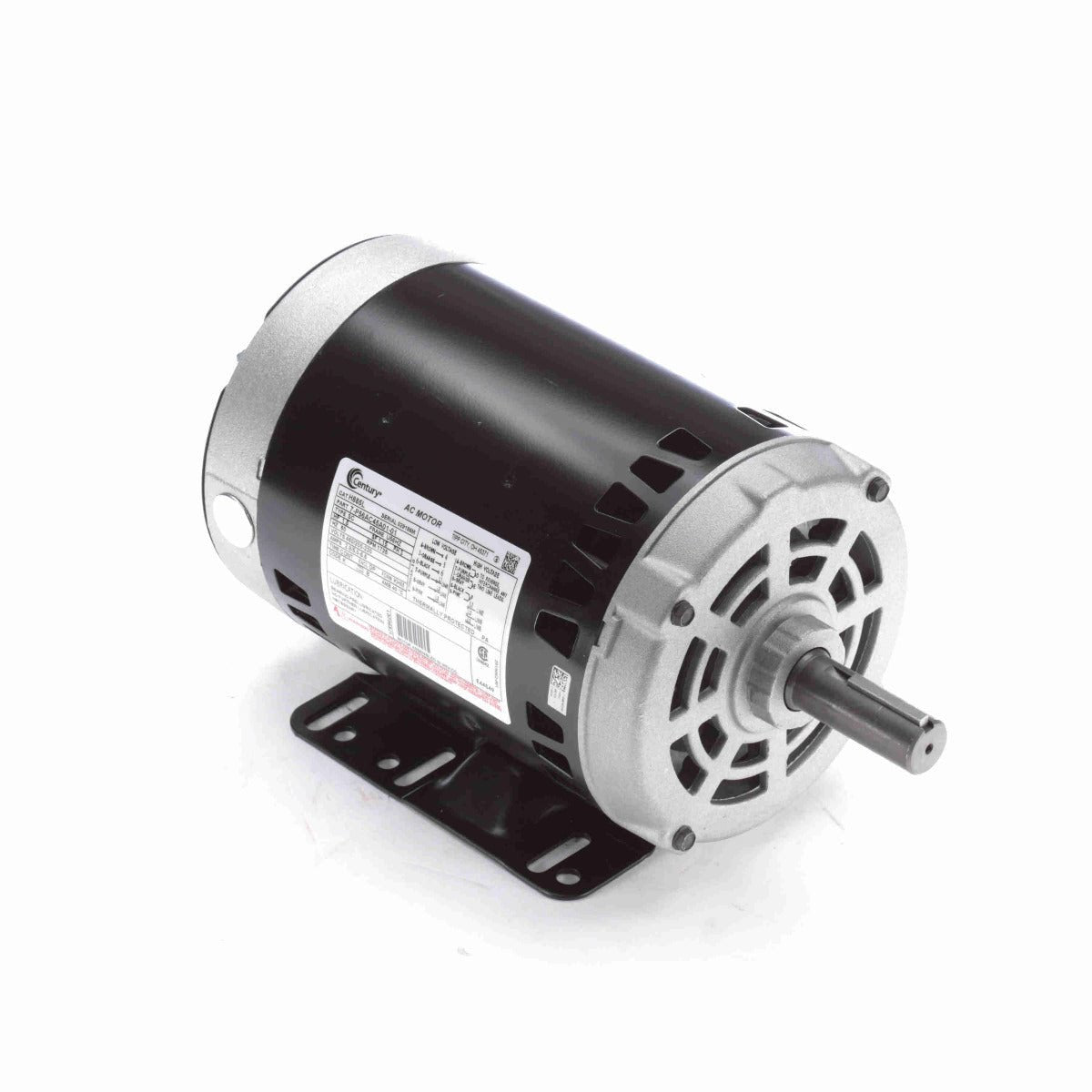

* Image is for reference only

H885L Century Motor 1.5HP 1800RPM 56HZ DP 208-230/460V 3 Phase 786674056481

SKU: H885L
$403.14
Sale $403.14
Description
  • This item replaces Marathon K064
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 1.5 Hp
Output KW: 1.1 kW Voltage: 460/200-230 V
Speed: 1725 rpm Service Factor: 1.15
Frame: U56HZ Enclosure: Drip Proof
Thermal Protection: Thermally Protected Efficiency: 70 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 2.8/5.0-5.6 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 12.81 in
Frame Length: 7.00 in Shaft Diameter: 0.875 in
Shaft Extension: 2.31 in

General Specifications

UPC: 786674056481 Weight: 29.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.52.4000
Country of Origin: Mexico
