Home » H855L Century Motor 3HP 1725RPM 56HZ OPEN 208-230/460 Volt 3 Phase
H855L Century Motor 3HP 1725RPM 56HZ OPEN 208 - 230/460 Volt 3 Phase - Square One Electric Motors & Pumps

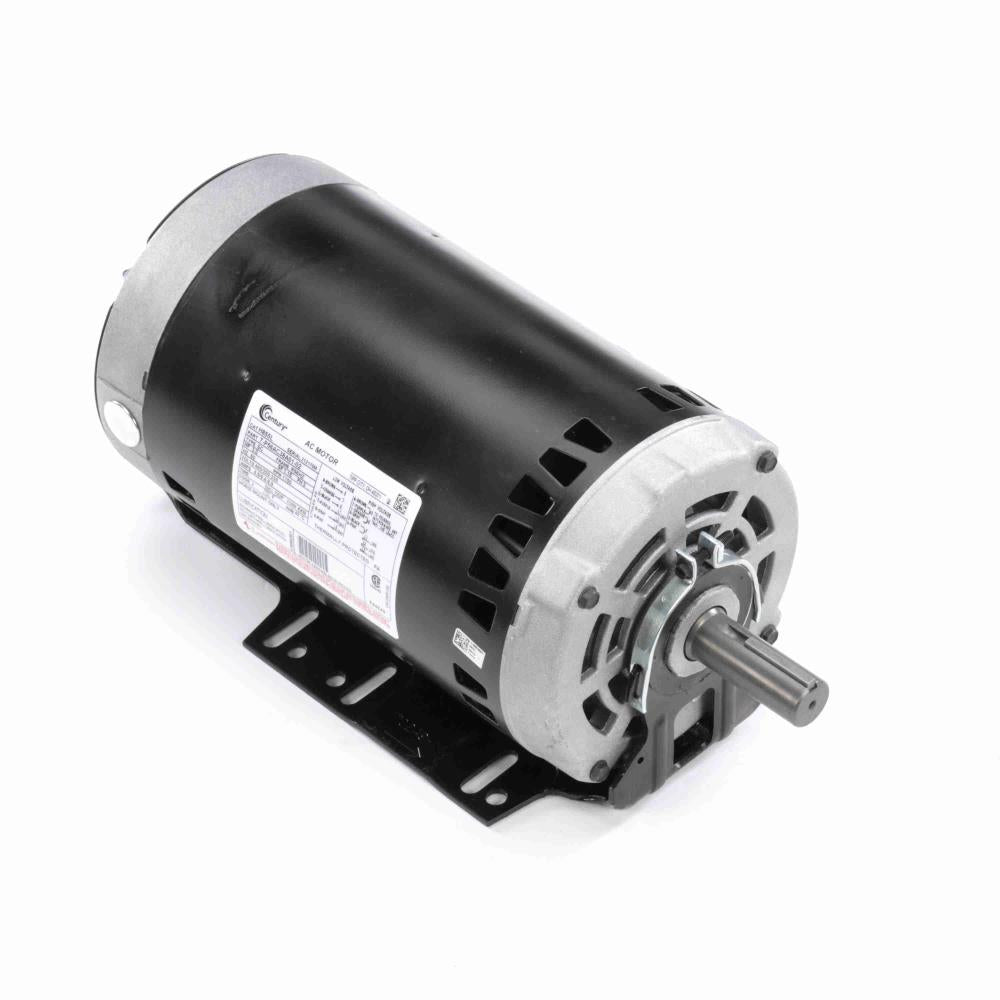

* Image is for reference only

H855L Century Motor 3HP 1725RPM 56HZ OPEN 208-230/460 Volt 3 Phase

SKU: H855L
$493.96
Sale $493.96
Description
  • This item replaces Marathon K1497
  • This item replaces Leeson 116593
  • Resilient Base
  • Single and two speed
Specifications

Nameplate Specifications

Phase: 3 Output HP: 3.0 Hp
Output KW: 2.2 kW Voltage: 460/200-230 V
Speed: 1750 rpm Service Factor: 1.15
Frame: R56HZ Enclosure: Open Drip Proof
Thermal Protection: Thermally Protected Efficiency: 78.5 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 4.5/9.4-8.9 A Duty: Continuous
Insulation Class: F UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Cushion Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 14.56 in
Frame Length: 8.75 in Shaft Diameter: 0.875 in
Shaft Extension: 2.31 in

General Specifications

UPC: 786674056122 Weight: 44.00 LB
Packaged Length: 19.00 IN Packaged Width: 8.00 IN
Packaged Height: 11.00 IN HTC: 8501.52.4000
Country of Origin: Mexico
