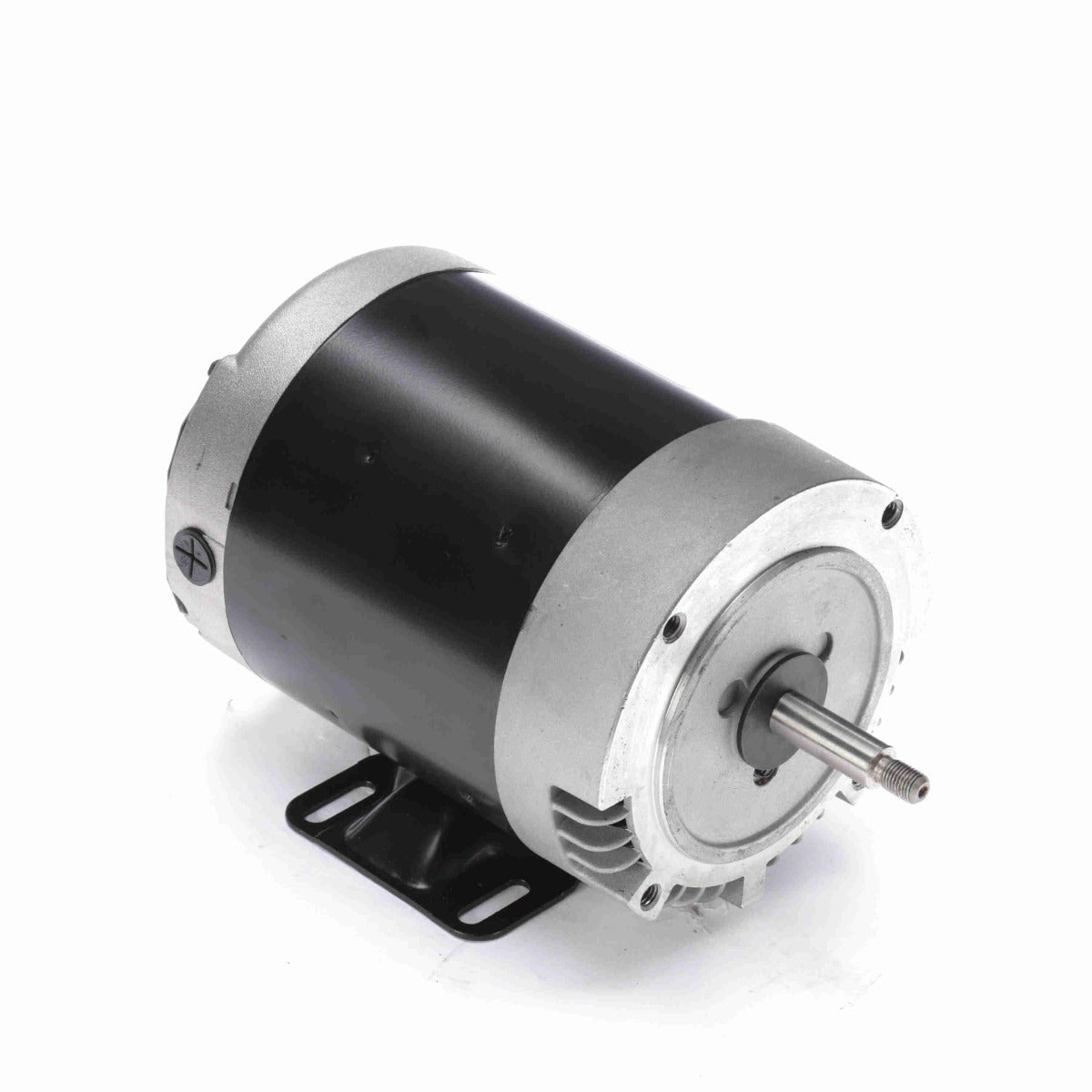

* Image is for reference only

H585AES Century Motor 3/4HP 1725RPM H56C ODP 200-230/460 Volt 3 Phase

SKU: H585AES
$144.34
Sale $144.34
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Premium efficiency promotes improved reliability.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
Specifications

Nameplate Specifications

Phase: 3 Output HP: .75 Hp
Output KW: 0.56 kW Voltage: 230/460 V
Speed: 1725 rpm Service Factor: 1.25
Frame: 56C Enclosure: Open Drip Proof
Thermal Protection: No Protection Efficiency: 81.1 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 2.5/1.25 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: N CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase Starting Method: Across The Line
Poles: 4 Rotation: Clockwise/Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.57 in
Frame Length: 6.00 in Shaft Diameter: 0.625 in
Shaft Extension: 2.07 in

General Specifications

UPC: 786674071149 Weight: 21.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.51.4040
Country of Origin: Mexico
