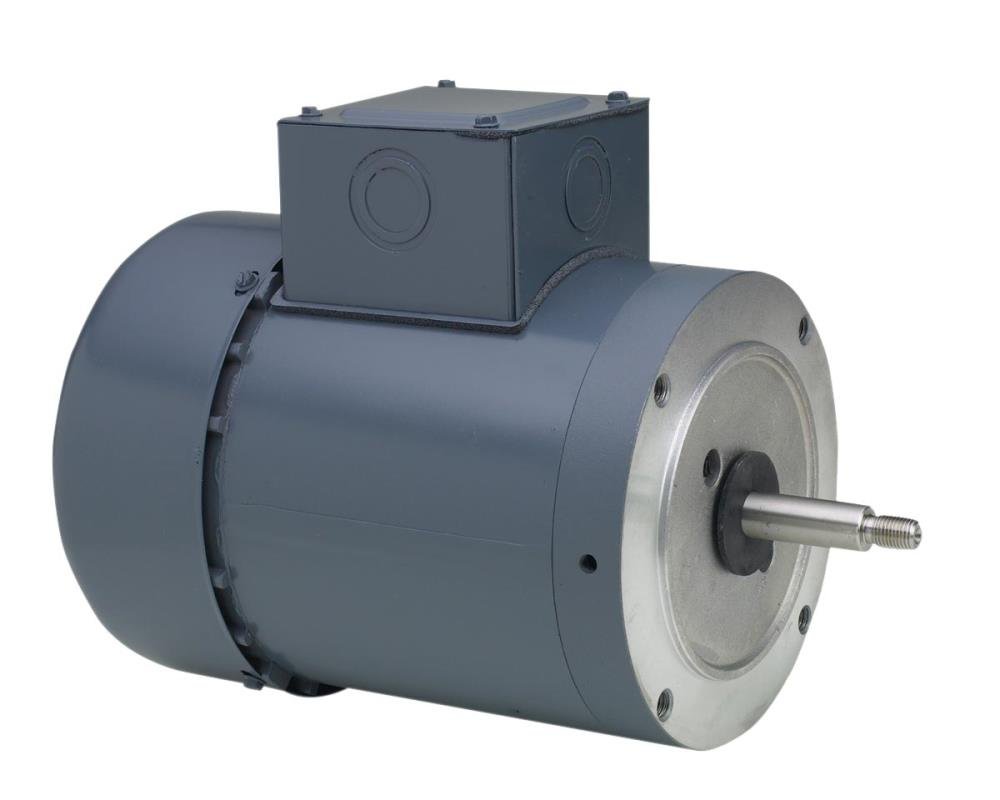

* Image is for reference only

H516ES Century Motor 1HP 3450RPM J56J TEFC 200-230/460 Volt 3 Phase

SKU: H516ES
$446.94
Sale $446.94
Description
  • NEMA C-Face
  • Double sealed ball bearings
  • 303 stainless steel threaded shaft
  • Operational at 200-230/460 V @60HZ. Nameplate image may vary from actual product.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 1.0 Hp
Output KW: 0.75 kW Voltage: 230/460 V
Speed: 3450 rpm Service Factor: 1.15
Frame: J56J Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Efficiency: 77.0 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 3.0/1.5 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: Y CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Reversible Clockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 11.90 in
Frame Length: 5.13 in Shaft Diameter: 0.625 in
Shaft Extension: 2.604 in

General Specifications

UPC: 786674072771 Weight: 21.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.52.4000
Country of Origin: Mexico
