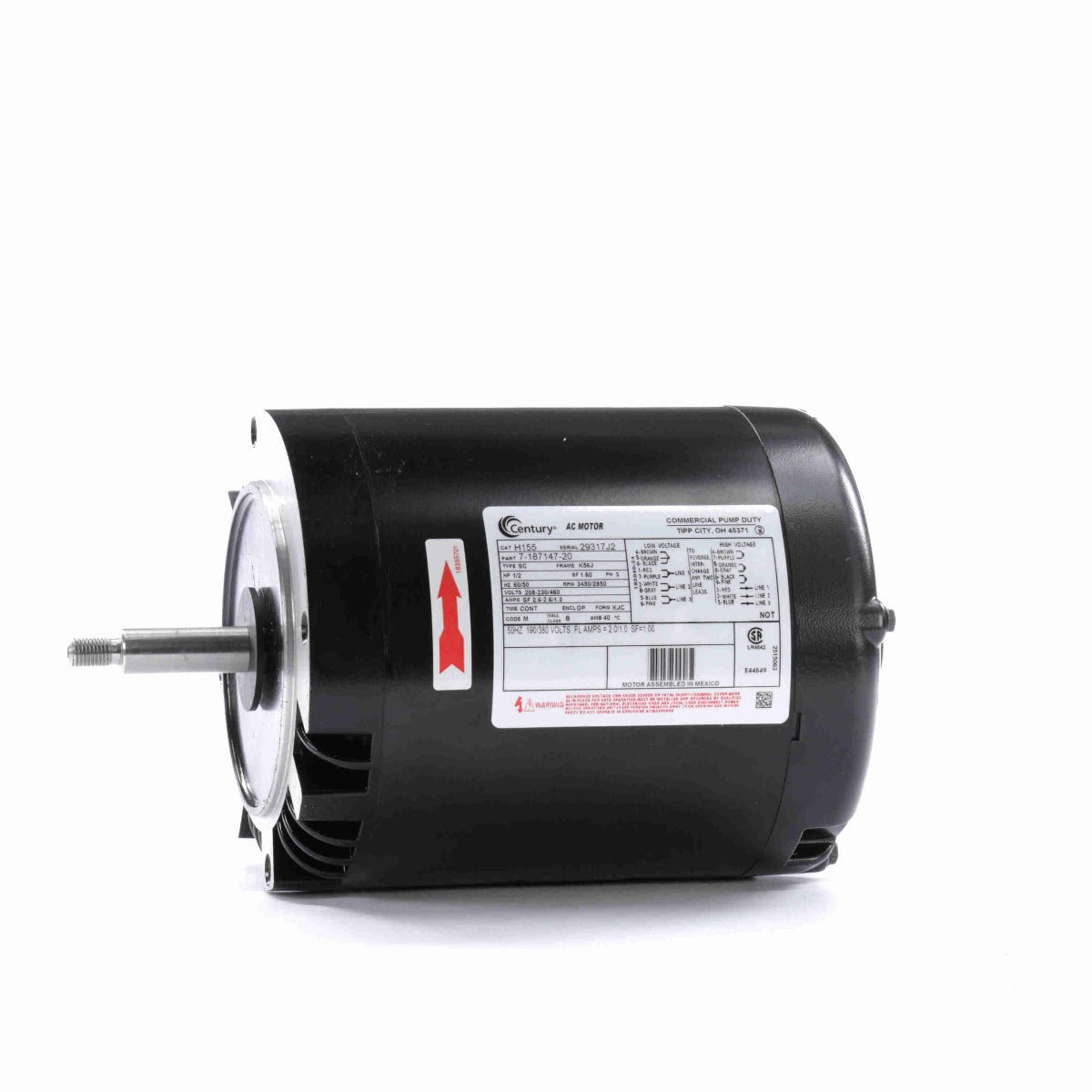

* Image is for reference only

H155 Century Motor 1/2HP 3450/2850RPM K56J ODP 208-230/460 Volt 3 Phase

SKU: H155
$305.11
Sale $305.11
Description
  • This item replaces Marathon K217
  • Mechanically locked bearing on shaft end
  • Double sealed ball bearings
  • 303 stainless steel threaded shaft
Specifications

Nameplate Specifications

Phase: 3 Output HP: 1/2 Hp
Output KW: 0.37 kW Voltage: 208-230/460 V
Speed: 3450/2850 rpm Service Factor: 1.6
Frame: K56J Enclosure: Drip Proof
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60 Hz Current: SF 2.6-2.6/1.3 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 2

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Reversible Clockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 11.10 in
Frame Length: 5.50 in Shaft Diameter: 0.625 in
Shaft Extension: 2.60 in

General Specifications

UPC: 786674022769 Weight: 28.00 LB
Packaged Length: 16.00 IN Packaged Width: 9.00 IN
Packaged Height: 8.00 IN HTC: 8501.51.4040
Country of Origin: China
