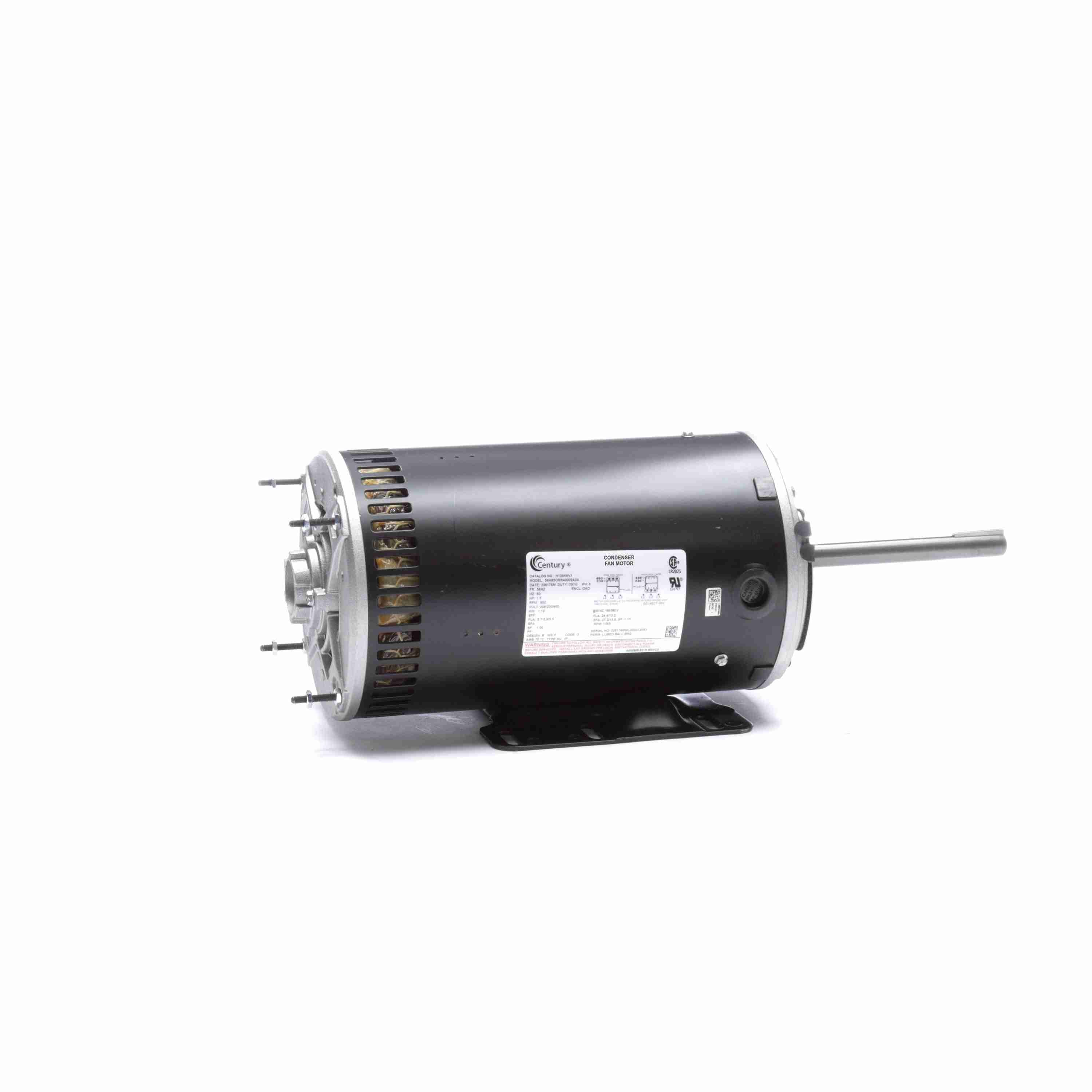

* Image is for reference only

H1054AV1 Century Motor 1.5HP 850RPM 56HZ OAO 208-230/460 Volt 3 Phase

SKU: H1054AV1
$515.24
Sale $515.24
Description
  • This motor replaces Century H1054A
  • Automatic reset thermal protector prevents overheating.
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
  • Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 1.5&1 Hp
Output KW: 1.1 kW Voltage: 230/460&190/380 V
Speed: 850&705 rpm Service Factor: 1
Frame: 56HZ Enclosure: Open Air Over
Thermal Protection: Thermally Protected Efficiency: 74 %
Ambient Temperature: 70 °C Frequency: 60/50 Hz
Current: 6.6/3.3&6.0/3.0 A Duty: Continuous
Insulation Class: F UL: Recognized
CSA: Y CE: N
Number of Speeds: 1

Technical Specifications

Electrical Type: Three Phase Starting Method: Across The Line
Poles: 8 Rotation: Reversible
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 18.85 in
Frame Length: 8.75 in Shaft Diameter: 0.625 in
Shaft Extension: 6 in

General Specifications

UPC: 786674074096 Weight: 50.00 LB
Packaged Length: 22.00 IN Packaged Width: 12.00 IN
Packaged Height: 12.00 IN HTC: 8501.52.4000
Country of Origin: Mexico

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 10.76 325.0 17.23 187.0 190 5.42 63.3 1.50
Full Load 3.31 100.0 9.19 100.0 850 1.49 74.8 1.50
Locked-Rotor 11.61 351.0 18.33 199.0 0 5.59 60.6 1.50
Break-Down 8.29 250.0 21.38 233.0 630 4.61 69.9 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 %
Current (Amps) 2.44 2.48 2.67 2.96 3.31
Rated Output (KW) 0.16 0.44 0.77 1.13 1.49
Efficiency (%) 0.0 66.3 74.2 74.8 74.8
Power Factor (%) 8.1 22.2 36.6 48.3 56.7
Speed (RPM) 900 890 880 865 850
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 2.29 4.59 6.89 9.19
