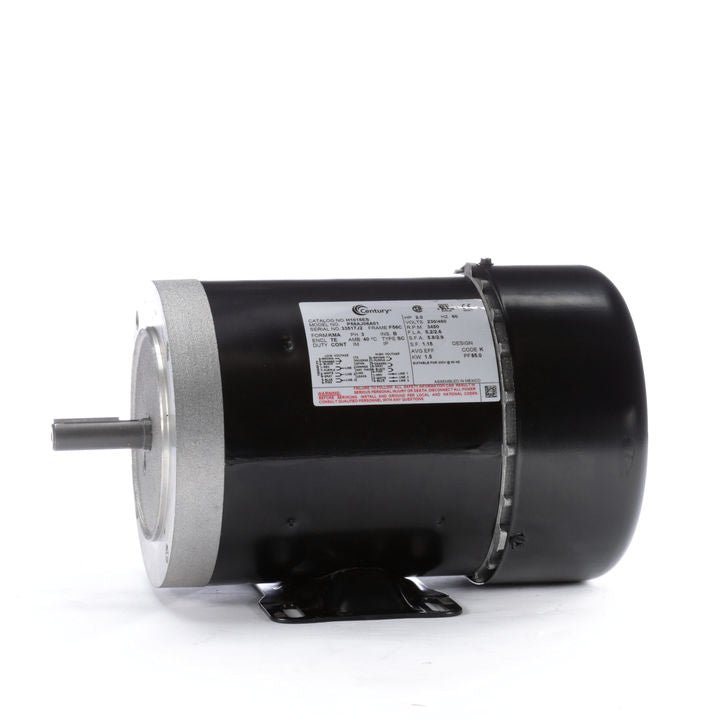

* Image is for reference only

H1015ES Century Motor 2HP 3450RPM M56HC TEFC 208-230/460 Volt 3 Phase

SKU: H1015ES
$605.40
Sale $605.40
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Continuous duty cycle design allows maximum operation at the rated power specifications.
  • Class B or F Insulation protects motor for a maximum temperature rating.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 2.0 Hp
Output KW: 1.5 kW Voltage: 230/460 V
Speed: 3450 rpm Service Factor: 1.15
Frame: F56C Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 5.2/2.6 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: Y Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Reversible Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 12.02 in
Frame Length: 5.75 in Shaft Diameter: 0.625 in
Shaft Extension: 2.07 in

General Specifications

UPC: 786674072702 Weight: 36.00 LB
Packaged Length: 15.50 IN Packaged Width: 10.50 IN
Packaged Height: 10.00 IN HTC: 8501.52.4000
Country of Origin: Mexico
