Home » H044LES Century Motor 1/2HP 1725RPM BA56J ODP 200-230/460 Volt 3 Phase
H044LES Century Motor 1/2HP 1725RPM BA56J ODP 200 - 230/460 Volt 3 Phase - Square One Electric Motors & Pumps

* Image is for reference only

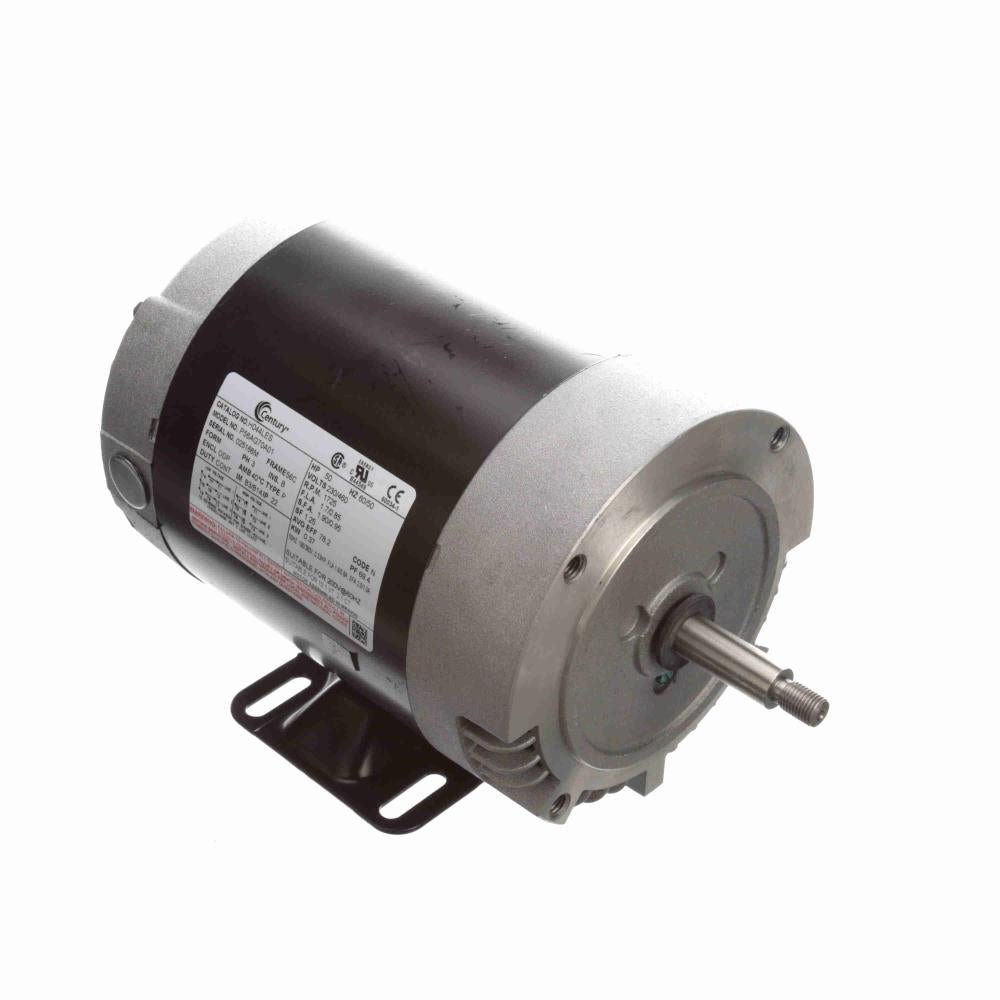

H044LES Century Motor 1/2HP 1725RPM BA56J ODP 200-230/460 Volt 3 Phase

SKU: H044LES
$195.10
Sale $195.10
Description
  • This motor replaces Century H044
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Premium efficiency promotes improved reliability.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
Specifications

Nameplate Specifications

Phase: 3 Output HP: .50 Hp
Output KW: 0.37 kW Voltage: 230/460 V
Speed: 1725 rpm Service Factor: 1.25
Frame: 56C Enclosure: Open Drip Proof
Thermal Protection: No Protection Efficiency: 78.2 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 1.7/0.85 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: N CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase Starting Method: Across The Line
Poles: 4 Rotation: Clockwise/Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 11.82 in
Frame Length: 5.38 in Shaft Diameter: 0.625 in
Shaft Extension: 2.57 in

General Specifications

UPC: 786674070913 Weight: 25.00 LB
Packaged Length: 14.00 IN Packaged Width: 8.00 IN
Packaged Height: 8.50 IN HTC: 8501.51.4040
Country of Origin: Mexico
