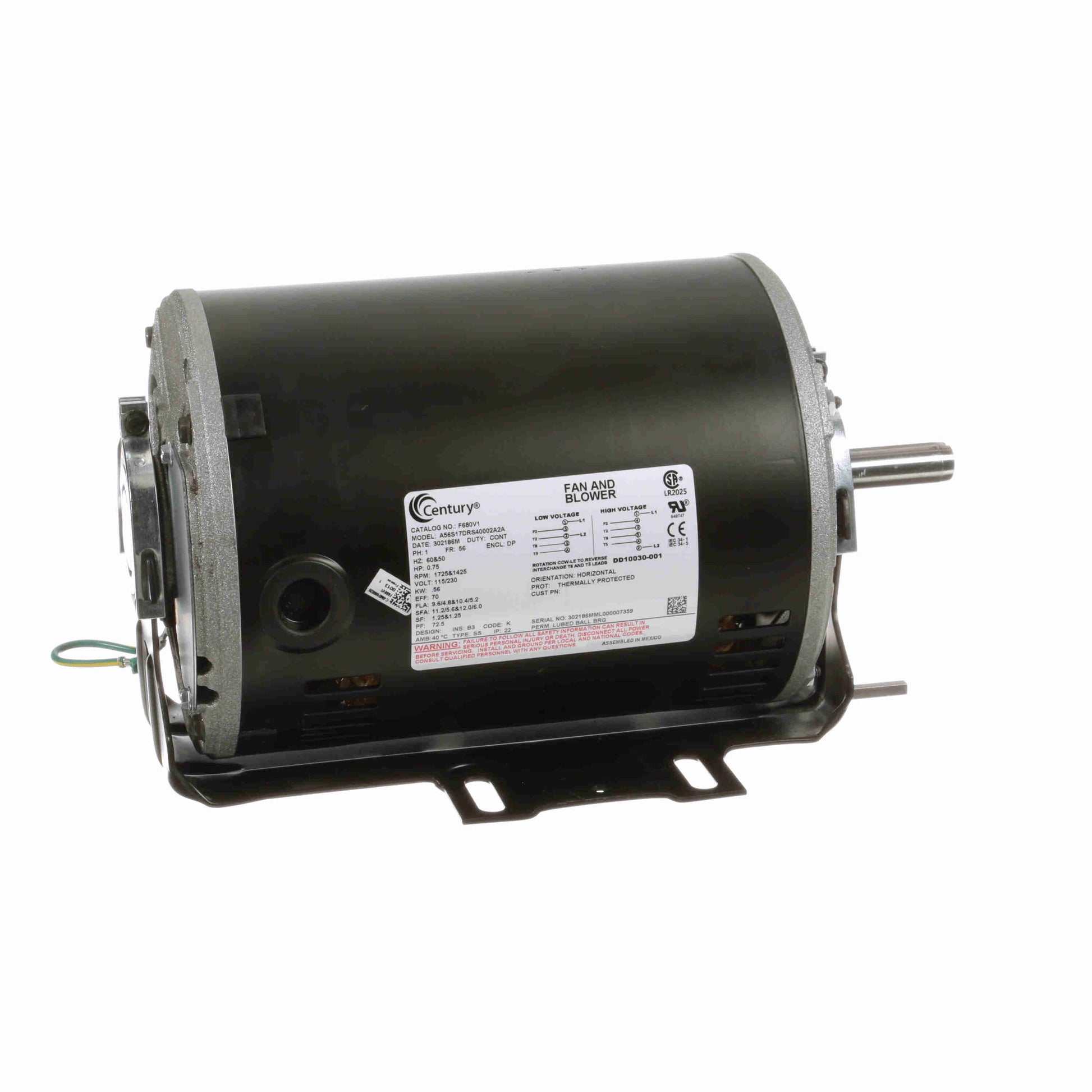

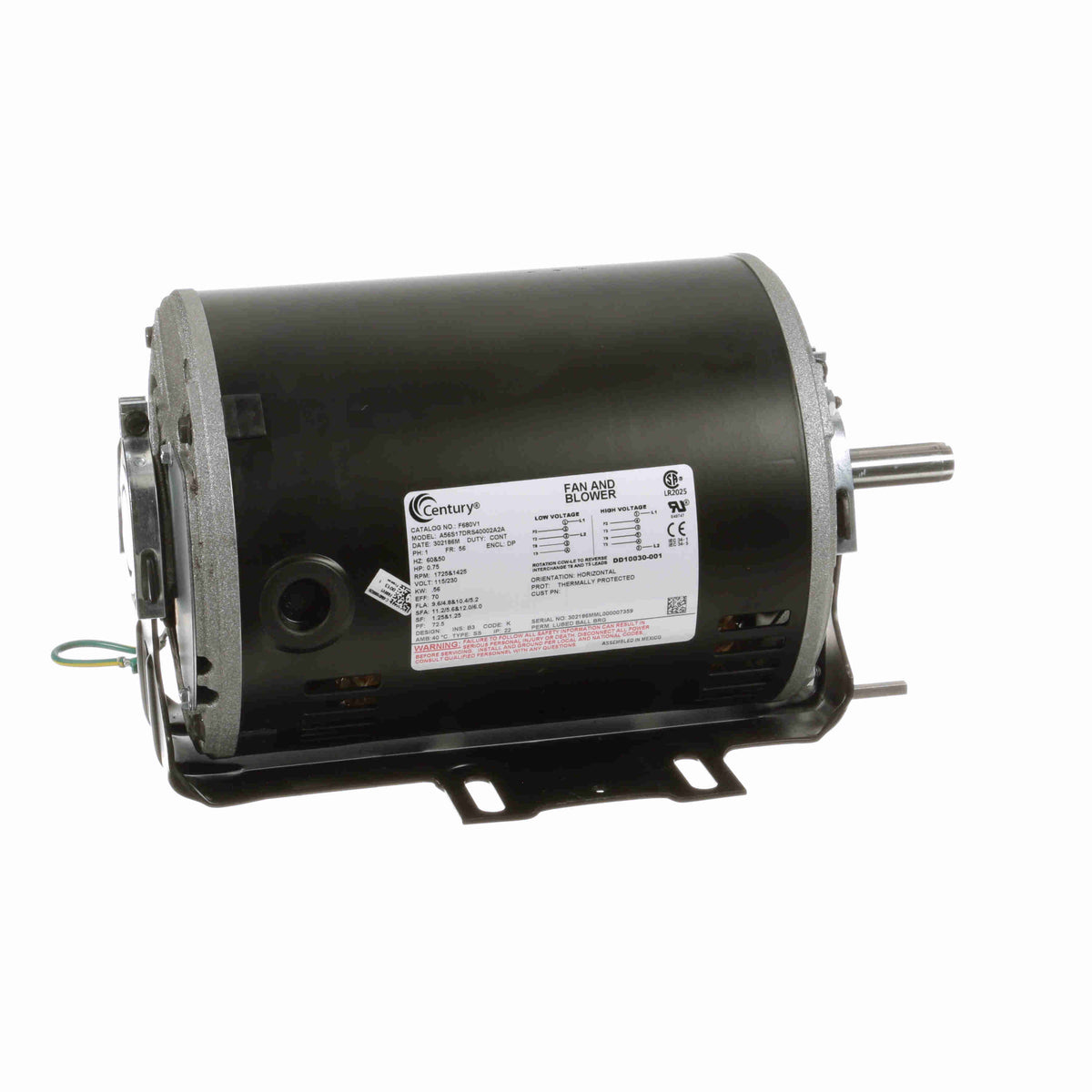

* Image is for reference only

F680V1 Century Motor 3/4HP 1725/1425RPM K56 ODP 230/115 Volt 1 Phase

SKU: F680V1
$417.77
Sale $417.77
Description
  • This motor replaces Century F680
  • Automatic reset thermal protector prevents overheating.
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 0.75 Hp
Output KW: 0.56 kW Voltage: 115/230 V
Speed: 1725&1425 rpm Service Factor: 1.25&1.25
Frame: 56 Enclosure: Drip Proof
Thermal Protection: Thermally Protected Efficiency: 70 %
Ambient Temperature: 40 °C Frequency: 60&50 Hz
Current: 9.6/4.8&10.4/5.2 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: Y CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Split Phase Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 12.04 in
Frame Length: 7.65 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in

General Specifications

UPC: 786674074393 Weight: 31.00 LB
Packaged Length: 14.00 IN Packaged Width: 8.00 IN
Packaged Height: 9.00 IN HTC: 8501.40.4040
Country of Origin: Mexico
