Home » F670AV1 Century Motor 1/2HP 1725RPM J56Z ODP 115 Volt 1 Phase
F670AV1 Century Motor 1/2HP 1725RPM J56Z ODP 115 Volt 1 Phase - Square One Electric Motors & Pumps

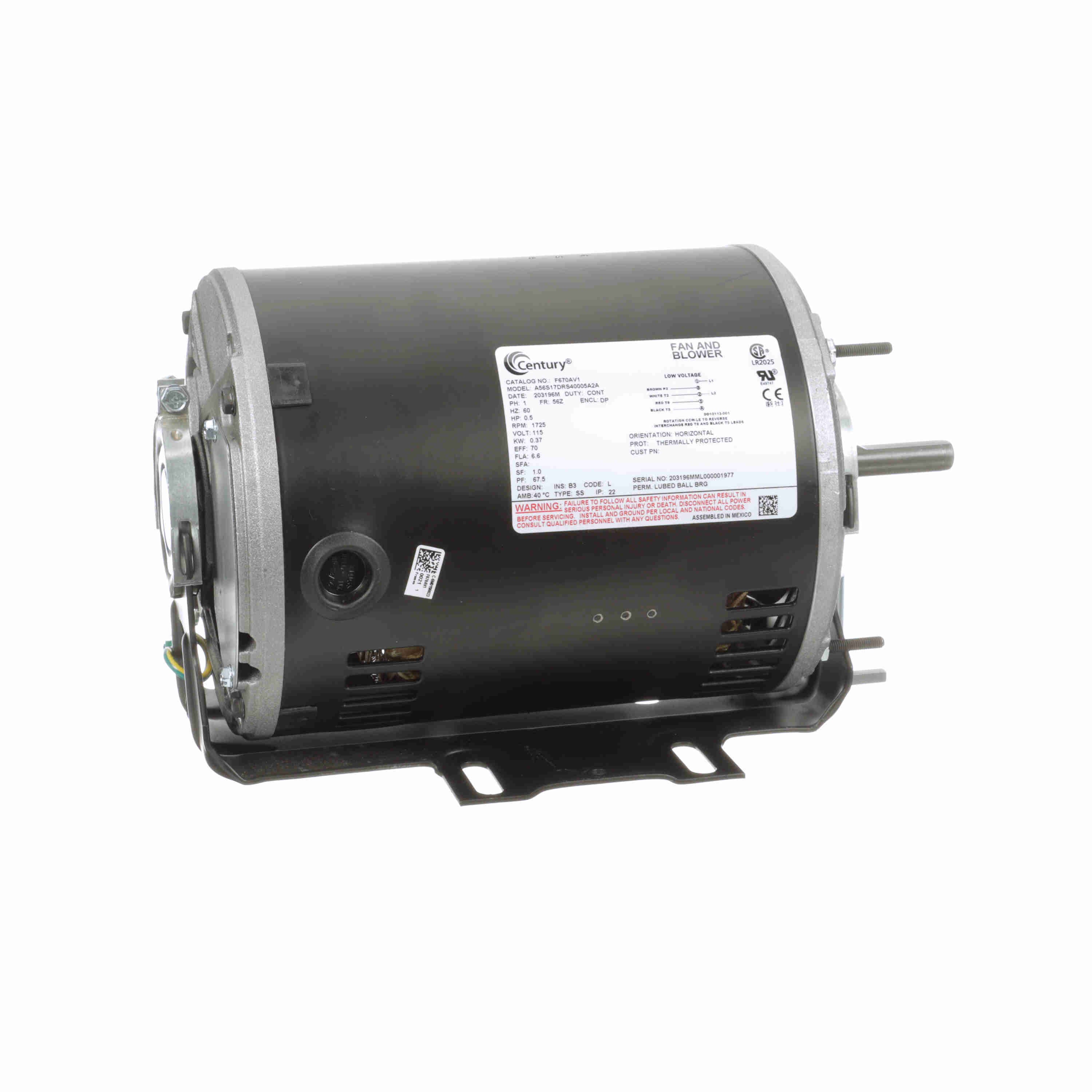

* Image is for reference only

F670AV1 Century Motor 1/2HP 1725RPM J56Z ODP 115 Volt 1 Phase

SKU: F670AV1
$318.83
Sale $318.83
Description
  • This motor replaces Century F670A
  • Resilient Base
  • Single and two speed
Specifications

Nameplate Specifications

Phase: 1 Output HP: 0.5 Hp
Output KW: 0.37 kW Voltage: 115 V
Speed: 1725 rpm Service Factor: 1
Frame: 56Z Enclosure: Drip Proof
Thermal Protection: Thermally Protected Efficiency: 70 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 6.6 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: Y CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Split Phase Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 11.51 in
Frame Length: 7.15 in Shaft Diameter: 0.500 in
Shaft Extension: 1.88 in

General Specifications

UPC: 786674074843 Weight: 25.00 LB
Packaged Length: 13.00 IN Packaged Width: 10.00 IN
Packaged Height: 10.00 IN HTC: 8501.40.4040
Country of Origin: Mexico
